Parking system, location of components - GF54.65-P-0006-01LE

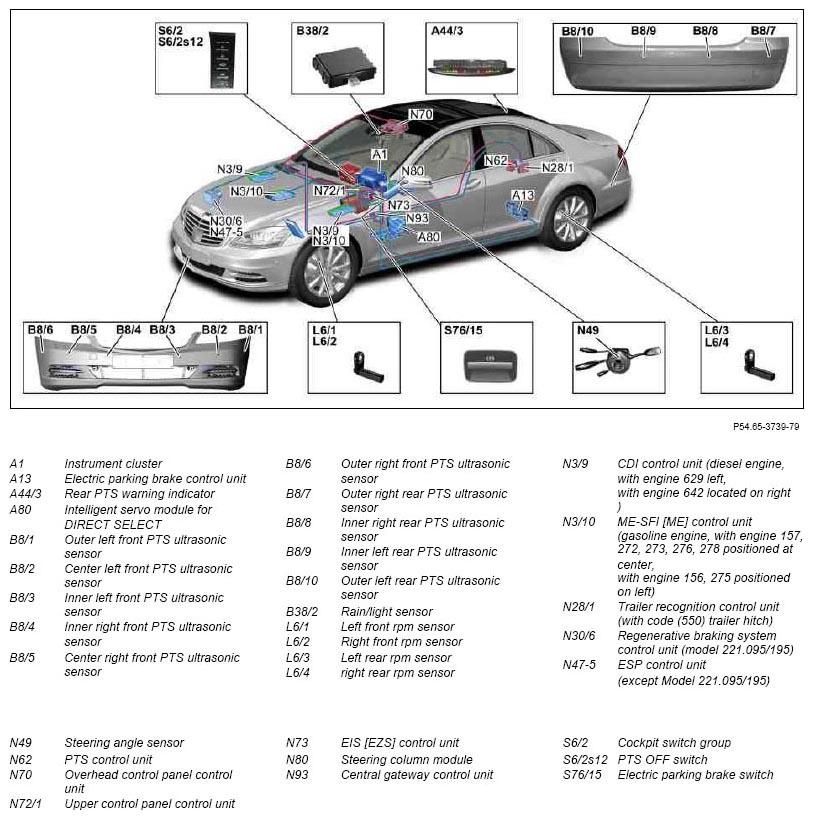

Fig 1: Identifying Parking System Components Location (Illustrated On Model 221.0)

G07509334

Courtesy of MERCEDES-BENZ USA

Illustrated on model 221.0
