Parking system, block diagram - GF54.65-P-0006-02LE

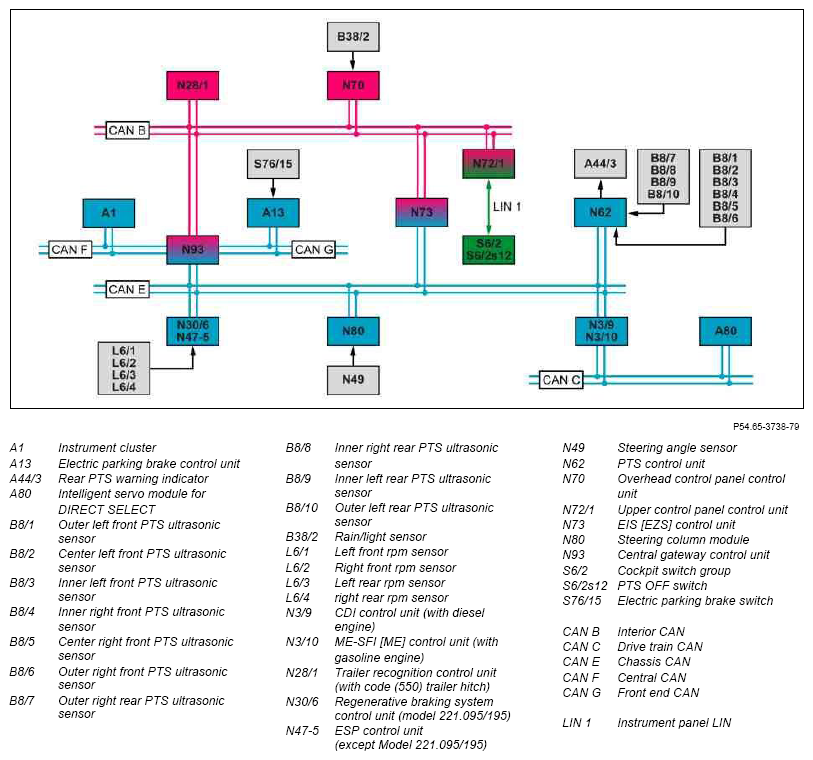

Fig 1: Parking System Block Diagram

G07509335

Courtesy of MERCEDES-BENZ USA
