PARKTRONIC location of components - GF54.65-P-0003-01LE

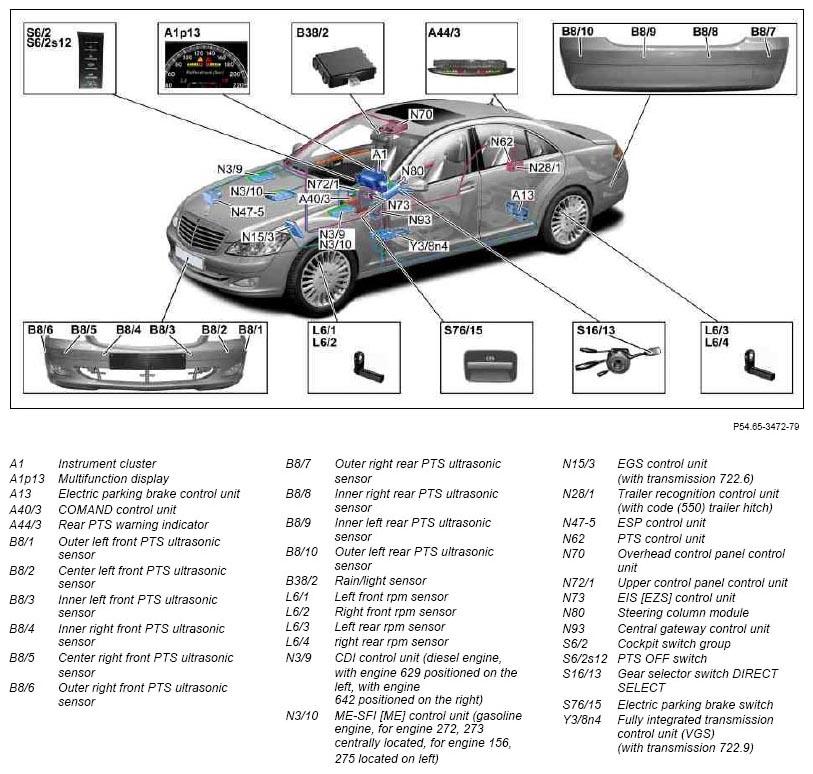

Fig 1: Identifying Parktronic Components Location

G07509318

Courtesy of MERCEDES-BENZ USA

Illustrated on model 221.0
