PARKTRONIC block diagram - GF54.65-P-0003-02LE

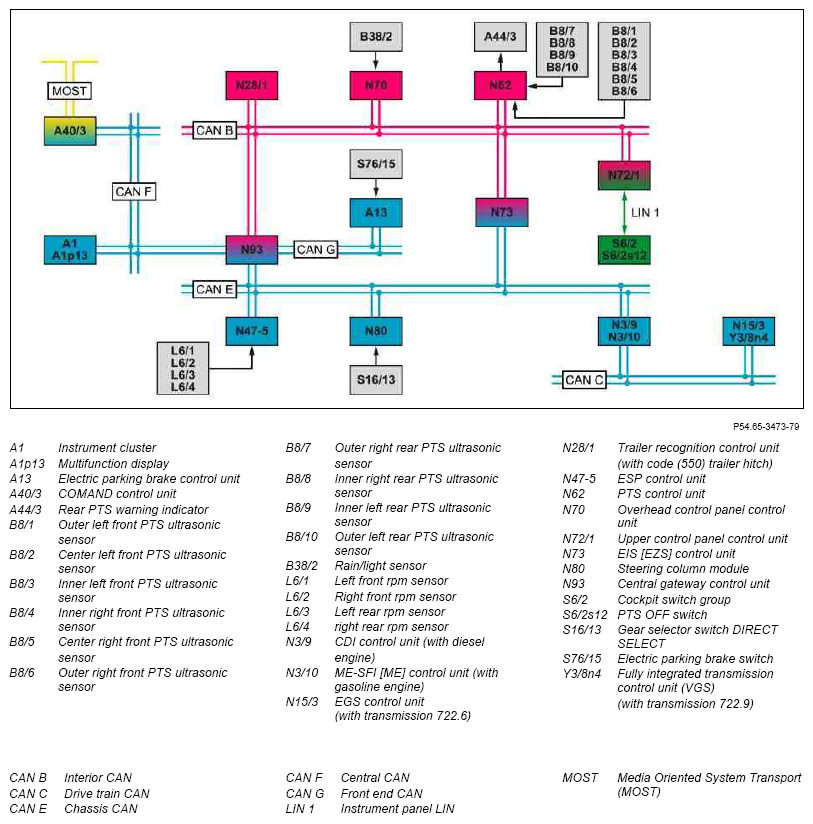

Fig 1: Parktronic Block Diagram

G07509319

Courtesy of MERCEDES-BENZ USA
