Blind Spot Assist, location of components - GF54.71-P-0003-02LE

Shown on model 221 as of 1.9.09

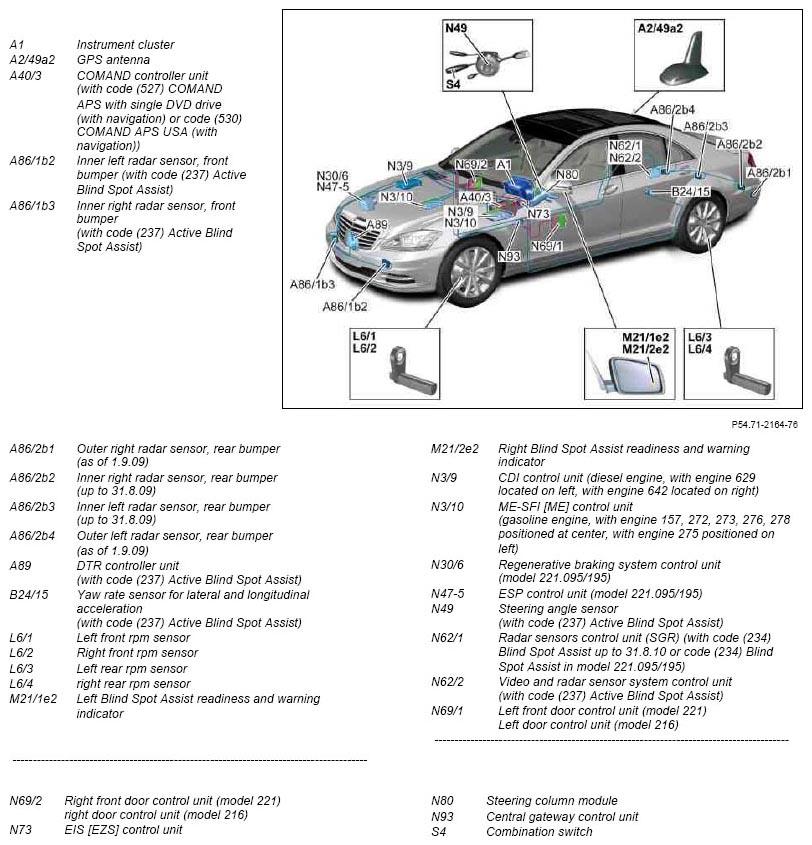

Fig 1: Identifying Blind Spot Assist Components Location - Shown On Model 221 As Of 1.9.09
G07516724Courtesy of MERCEDES-BENZ USA
