Blind Spot Assist block diagram - GF54.71-P-0003-01LE

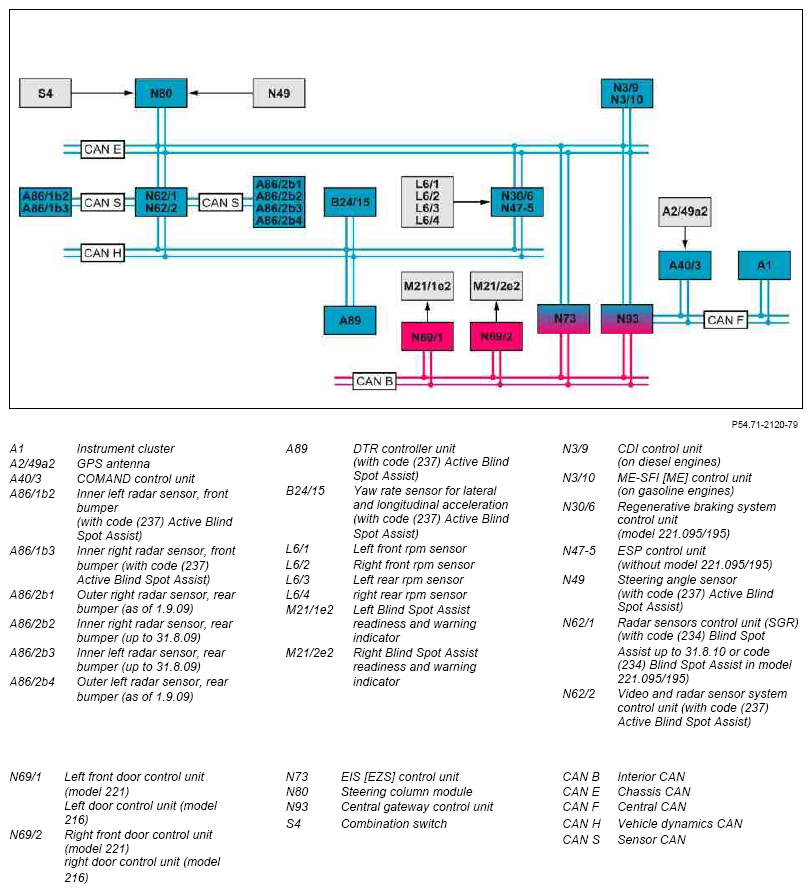

Fig 1: Blind Spot Assist Block Diagram

G07516723

Courtesy of MERCEDES-BENZ USA
