Backup camera (RFK), block diagram - GF54.65-P-0005-02SX (2 Of 2)

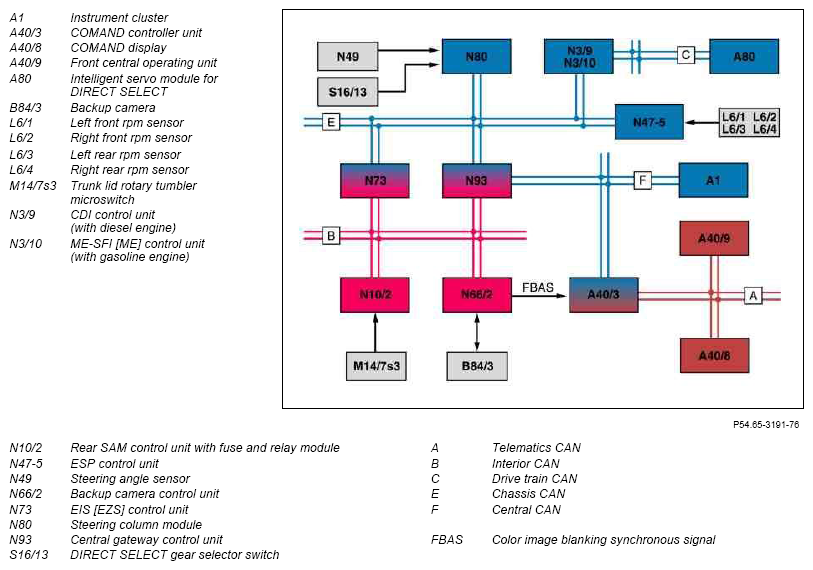

Fig 1: Backup Camera (RFK) Block Diagram

G07509326

Courtesy of MERCEDES-BENZ USA
