Automatic lane recognition, location of components - GF54.71-P-0002-01LE

REFER TO BASIC KNOWLEDGE

Shown on model 221.0

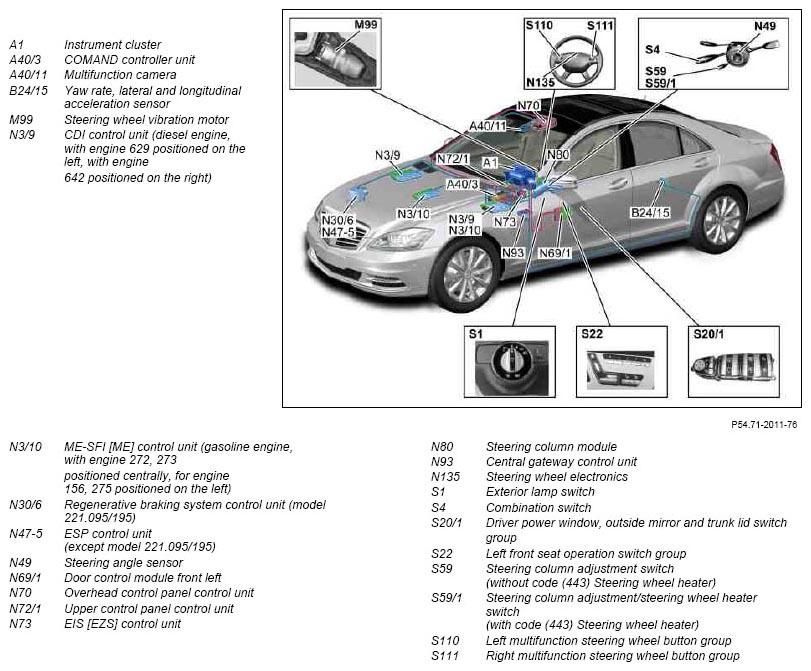

Fig 1: Identifying Automatic Lane Recognition Components Location (Shown On Model 221.0)
G07516721Courtesy of MERCEDES-BENZ USA
