Active Lane Keeping Assist, location of components - GF54.71-P-0004-01LE

Illustrated on model 221.0

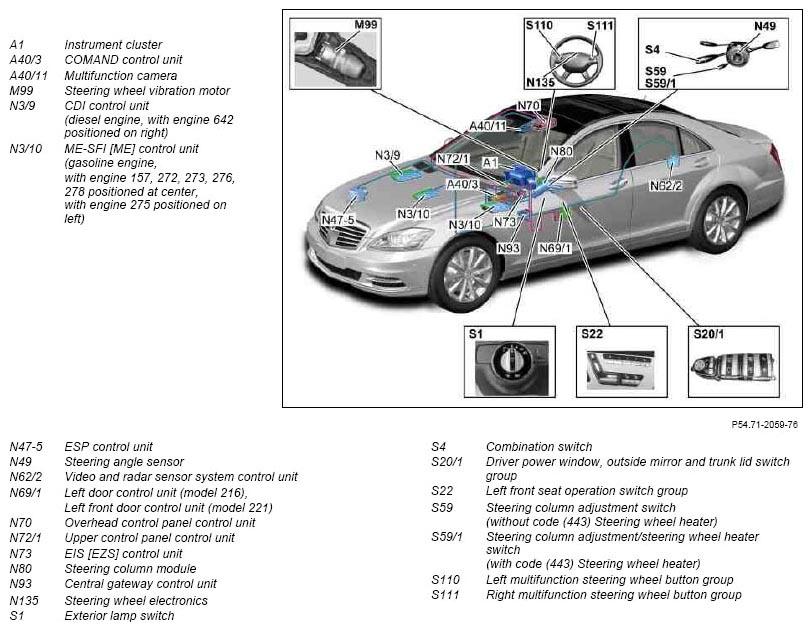

Fig 1: Identifying Active Lane Keeping Assist Components Location - Model 221.0
G07516737Courtesy of MERCEDES-BENZ USA
