Active Lane Keeping Assist, block diagram - GF54.71-P-0004-02LE

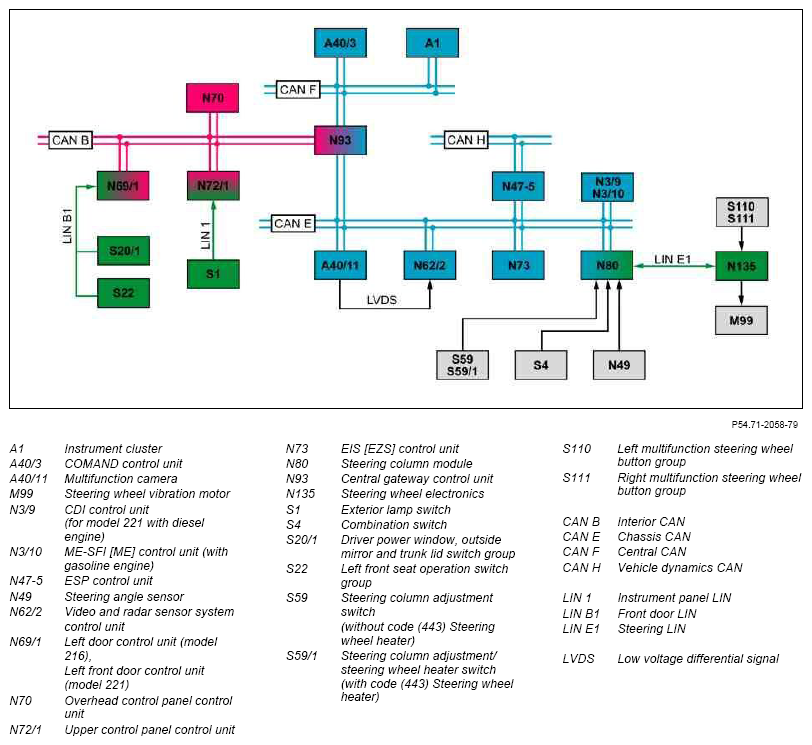

Fig 1: Active Lane Keeping Assist Block Diagram

G07516738

Courtesy of MERCEDES-BENZ USA
