ETC control unit, location - GF27.19-P-4012-01GG

WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 722.6 in models 129, 170, 202, 203, 208, 209, 211, 219, 240

Shown on model 170

Location

The ETC control unit (N15/3) is installed under the tread plate in the front passenger footwell.

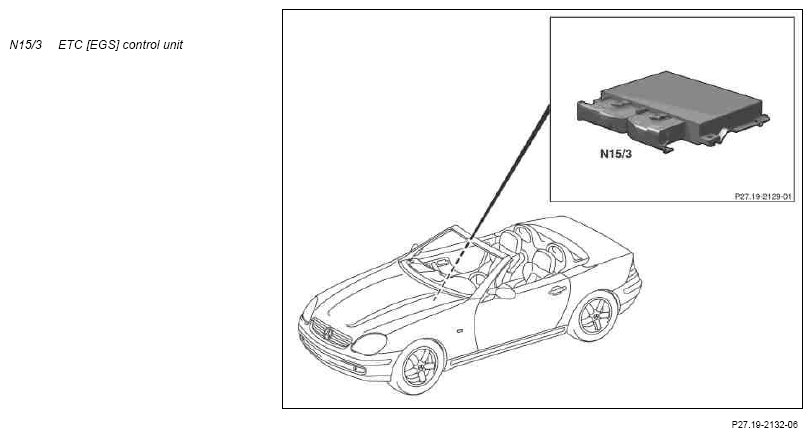

Fig 1: Locating ETC (EGS) Control Unit
G07279425Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
