Upper control panel control unit, design - GF54.21-P-4105-03TS

WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.

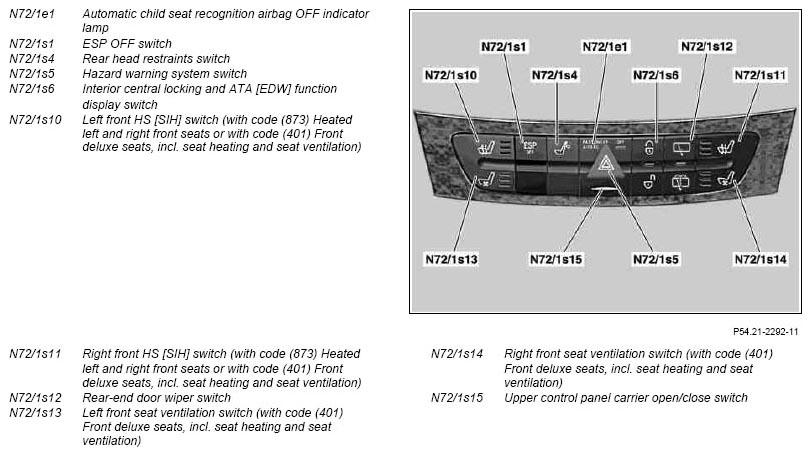

Fig 1: Identifying Upper Control Panel Control Unit And Components
G07193306Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
