Rotational speed and lateral acceleration sensor, location - GF42.45-P-4801-01E

WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.

Model 211

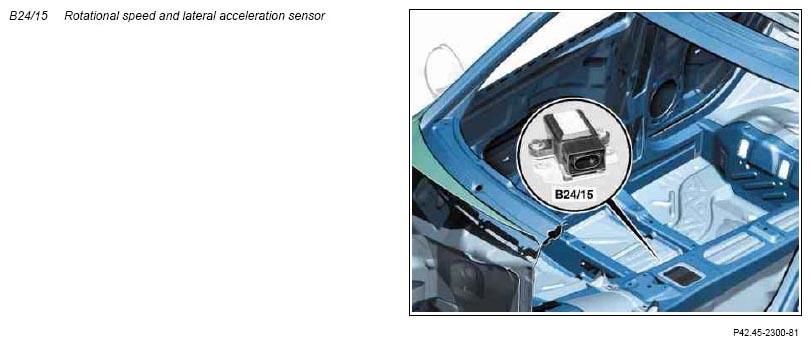

Fig 1: Locating Rotational Speed And Lateral Acceleration Sensor
G07191462Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
