Operating unit, location - GF42.46-P-4200-01SL

WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.

Shown on model 230 left-hand drive vehicle

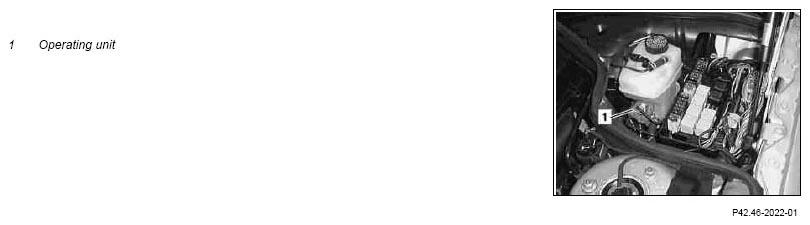

Fig 1: Locating Operating Unit

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
