Operating unit, design - GF42.46-P-4200-02SL
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
View presented
Design

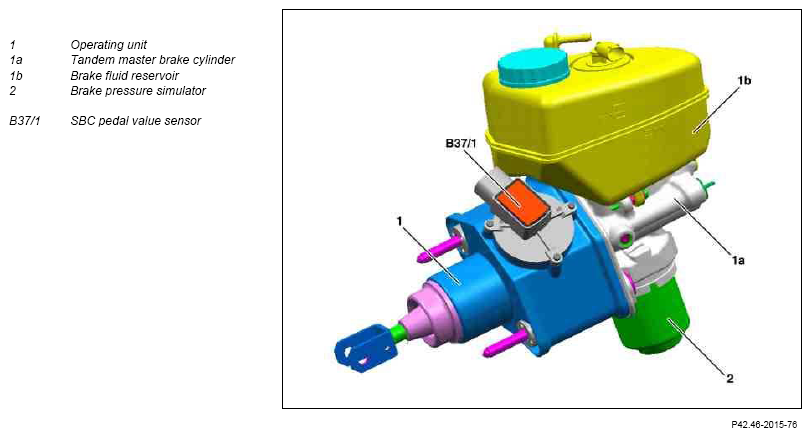

A tandem brake master cylinder (1a) with a brake fluid reservoir (1b) forms the basis of the operating unit (1).
The brake pressure simulator (2) and SBC pedal value sensor (B37/1) are mounted on the operating unit.
2 pedal value sensors are attached on model 240: SBC pedal value sensor 1 (B37/1) and SBC pedal value sensor 2 (B37/2).
