Electronic stability program (ESP), location of electronic components - GF42.45-P-0001-03TM

WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.

Illustrated on model 219.3

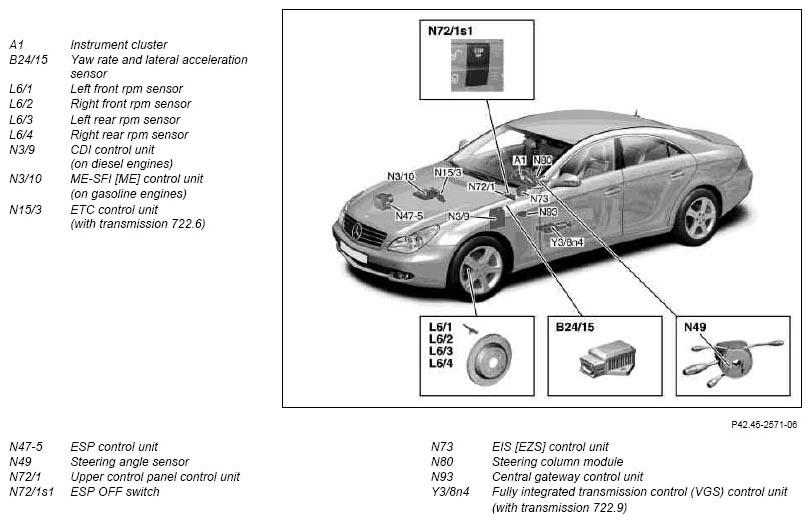

Fig 1: Locating Electronic Stability Program Electronic Components
G07191436Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
