Remove/install load compartment inner side paneling - AR68.30-P-1180T

WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 211.2

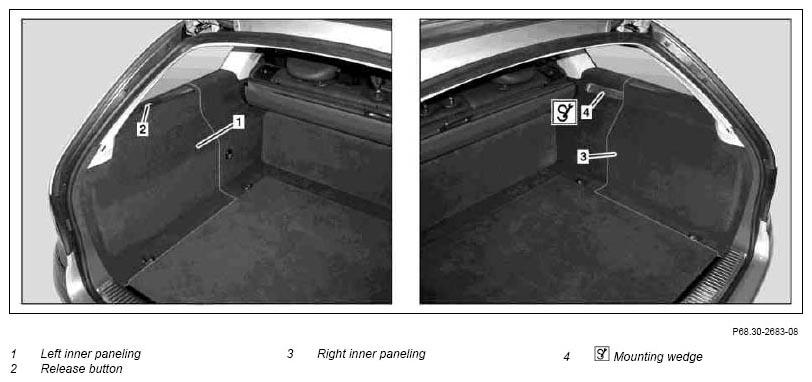

Fig 1: Identifying Load Compartment Inner Side Paneling Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1.1	Actuate release button (2) and remove left inner paneling (1)	When removing left inner paneling (1).
2.1	Unclip right inner paneling (3) from side wall with mounting wedge (4) and remove	When removing right inner paneling (3).
			*110589035900
		Installation: Replace damaged clips on right inner paneling (3).
3	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
