Remove/install detachable parts when replacing windshield - AR67.10-P-1050T

WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 211.0/2/6

Shown on model 211.0 with code 413 Panoramic sliding roof, with code 419 Solar module for panoramic glass roof

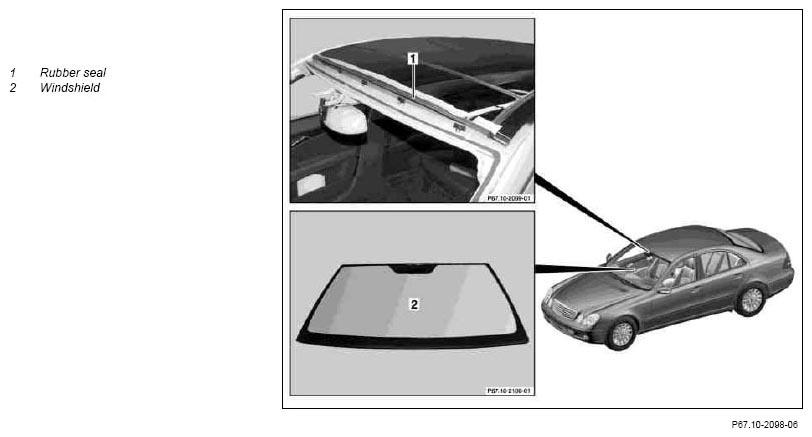

Fig 1: Identifying Rubber Seal And Windshield

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove rain/light sensor (B38/2)		AR82.30-P-7800T
2	Remove water collector		AR83.25-P-1402T
3	Remove ornamental frame on windshield.	Model 211.0 with code 413 Panoramic sliding roof, with code 419 Solar module for panoramic glass roof	AR67.10-P-1200T
4	Remove water repellent	Model 211.0 except code 413 Panoramic sliding roof, except code 419 Solar module for panoramic glass roof	AR88.85-P-2100T
		Model 211.0 with code 413 Panoramic sliding roof, with code 419 Solar module for panoramic glass roof	AR77.21-P-0050T
		Model 211.2	AR88.85-P-2100TB
5	Install in the reverse order
