Prepare connection plate for C and D-pillar - AR63.20-P-0500-05TA
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13,250 RPM) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
| WE58.40-Z-1005-03A | Wet/dry vacuum cleaner |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

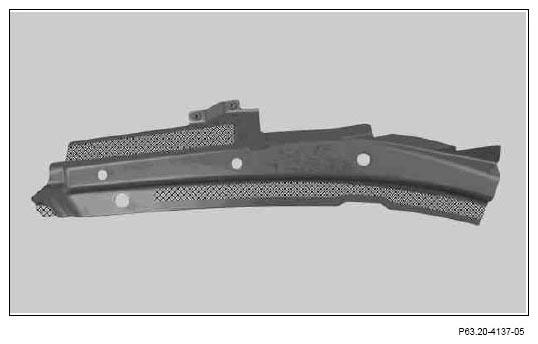

- Grind connection surfaces down to bare metal in shaded areas. Sand spot weld flanges to bare metal on both sides
- Remove grinding and drilling chips using wet/dry vacuum cleaner.
- Coat spot welding flanges with zinc dust paint.
