Remove/install the suspension strut - AR32.25-P-1017T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 211.08/09/28/29 except CODE (489) Airmatic (semi-active air suspension)
| 18.3.08 | Value modified: Nut, front suspension strut to front end | *BA32.25-P-1001-04B |
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by moving parts that can pinch, crush or , in extreme cases even sever extremities. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0009-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Tighten nuts and bolts of chassis components only when vehicle is in the ready-to-drive condition. | |||

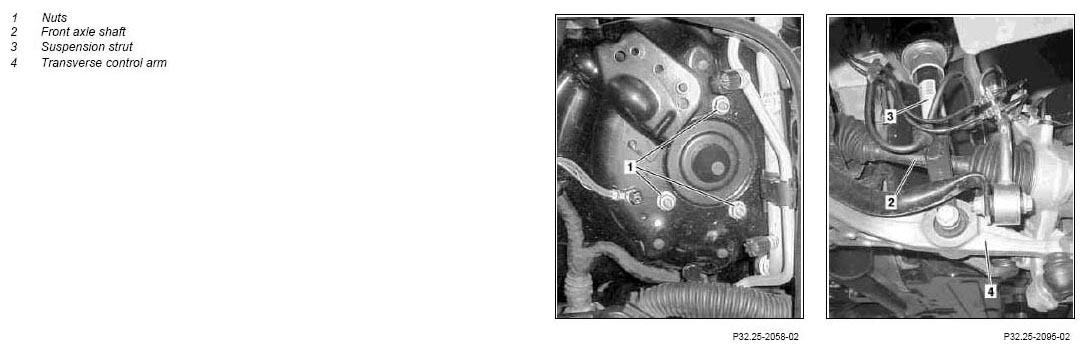

| 1 | Remove front axle shaft (2) | AR33.30-P-0620I | |
| 2 | Unscrew nuts (1) | *BA32.25-P-1001-04B | |
| 3 | Press transverse control arm (4) downwards and remove and remove suspension strut (3) | ||
| 4 | Install in the reverse order | ||
| 5 | Check headlamp setting and correct if necessary | After installing new parts | |
| Check and correct headlamp adjustment | AP82.10-P-8260T |
STRUTS
| Number | Designation | Model 211.08/09/28/29 | |
|---|---|---|---|
| BA32.25-P-1001-04B | Nut, front suspension strut to front end | Nm | 30 |
