Detach/install link rod at torsion bar - AR32.20-P-0300-02VM
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
FRONT AXLE STABILIZER BAR
| Number | Designation | Model 211.08/09/28/29 | ||
|---|---|---|---|---|
| BA32.20-P-1002-02B | Self-locking nut of connecting rod to torsion bar | M10 | Nm | - |
| M10x1.5 | Nm | - | ||
| M12x1.5 | Nm | 95 | ||
| M14x1.5 | Nm | - |
Removal

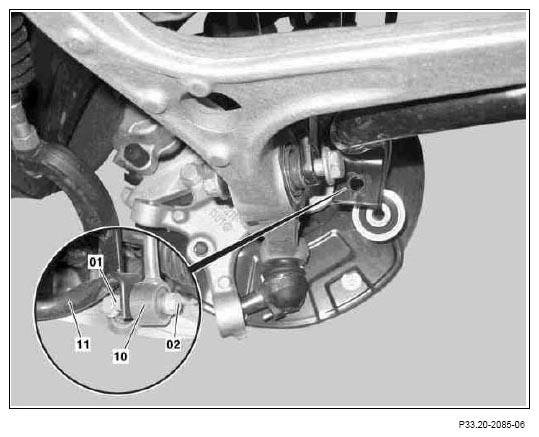

- Unscrew self-locking nut (01) and bolt (02) of link rod (10) at stabilizer bar (11).
Checking
- Check rubber mount of link rod (10) for damage and replace link rod (10) if necessary.
Install
- Screw on self-locking nut (01) and bolt (02) of link rod (10) on stabilizer bar (11)
.
Replace self-locking nut (01). Only tighten self-locking nut (01) when vehicle is ready to drive, turn steering if necessary.
