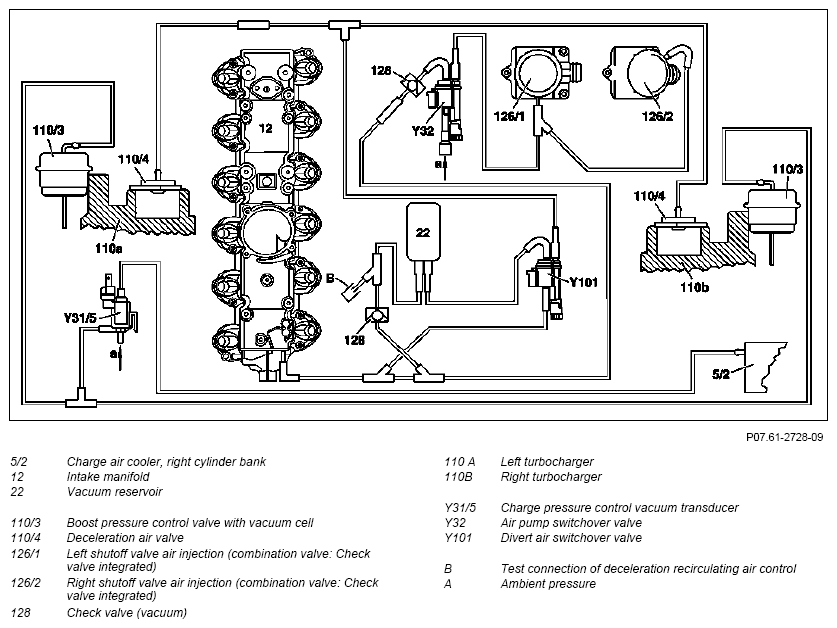

ME-SFI pneumatic diagrams - PP07.61-P-5000M
ENGINE 275.953 in MODEL 216, 221
ENGINE 275.982 in MODEL 216, 221
As assembly material for hose lines only Isopropanol or Palationol are permissible. In any case do not use oil or grease. Lines with overpressure can slip off and residues of grease can bond with check valves and drillings.
Study hose lines and connection pieces for cracks.
The hose lines must be secured with clamps. During assembly work identify carefully and clearly all hose connections which are to be slackened.
| Evaporative emission control system function | GF47.30-P-3013M |
| Boost pressure control, function | GF09.40-P-3000M |
| Actuation divert air function | GF09.40-P-3002M |
