Pressure sensor downstream of throttle valve actuator function - GF07.04-P-5049-01M

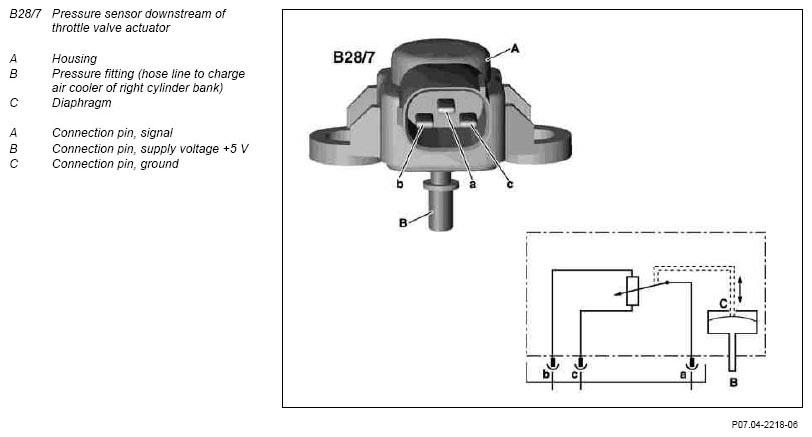

Fig 1: Pressure Sensor Downstream Of Throttle Valve Actuator Circuit

Courtesy of MERCEDES-BENZ USA

The pressure distorts the diaphragm and through this the value of the Piezo resistor. The output voltage serves as pressure information for the engine control unit.
