Charge air temperature sensor, location/task/function - GF07.04-P-5038M
ENGINES 275.953 in MODEL 216, 221 up to Model Year 08/modification year 07
ENGINES 275.982 in MODEL 216, 221 up to Model Year 08/modification year 07

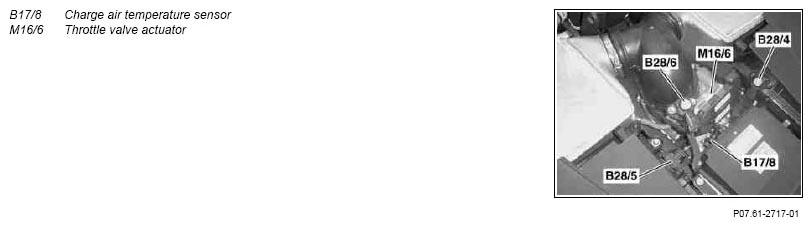

| Charge air temperature sensor, location | In the intake manifold upstream of the throttle valve actuator |
| Charge air temperature sensor, task | Measurement of charge air temperature. The signal is (together with the signal of the intake manifold pressure) used to compute the air mass. In addition the charge air temperature sensor (B17/8) monitors the function of the charge air cooling system |
| Charge air temperature sensor, function | The NTC resistor integrated in the charge air temperature sensor (B17/8) alters its ohmic resistance in line with the charge air temperature. |
