Low temperature cooler, location/task/design/function - GF09.41-P-3103M
ENGINE 275.953 in MODEL 216, 221 up to Model Year 08/AEJ 07
ENGINE 275.982 in MODEL 216, 221 up to Model Year 08/AEJ 07
Shown: model 240

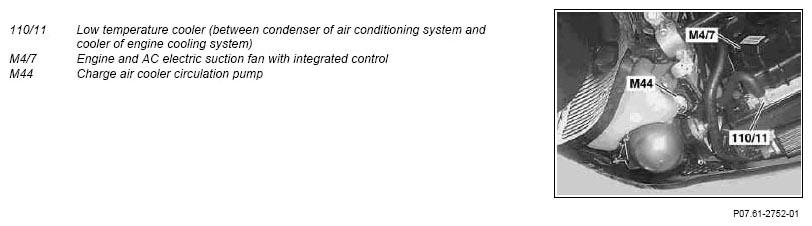

Fig 1: Identifying Charge Air Cooler Circulation Pump, Engine And AC Electric Suction Fan With Integrated Control
| Position of the low temperature cooler | Located in the cooler module at vehicle front behind the cooler of the engine cooling system. Engine 275.98, 285.98: In front of the cooler of the engine cooling system. |
| Task of the low temperature cooler | The coolant which is heated in the charge air cooler is cooled off in the low temperature coolant circuit. |
| Design of the low temperature cooler | The low temperature cooler is designed as an air/fluid heat exchanger. Engine 275.98, 285.98: Increased cooling due to larger low temperature coolers. |
| Function of the low temperature cooler | The airstream flows through the numerous cooling fins and thus cools the coolant flowing through the low temperature cooler. |
