Calibration of the backup camera - AR54.65-P-0022SX
MODEL 216.3, 221.0/1 up to 31.5.07 with CODE (218) Backup camera
MODEL 207.3, 212.0/1, 216.3, 218.3, 221.0/1 with CODE (218) Backup camera with CODE (498) Japan version
Shown on model 221
Courtesy of MERCEDES-BENZ USA
Dimensions:
| |
Calibrate backup camera |
|
|
| |
|
The backup camera must be calibrated in the following cases:
- After replacing the reversing camera control unit
- After removing the backup camera
- After removing the trunk lid
- After adjusting the trunk lid
- After changes to the suspension which influence the suspension level
- After work on the steering system which influences the learnt steering angle values e.g. replacing the steering angle sensor
|
|
| 1 |
Drive the vehicle onto a level surface and place the front wheels in the straight-ahead position |
The suspension level must be on drive mode drive mode. |
|
| 2 |

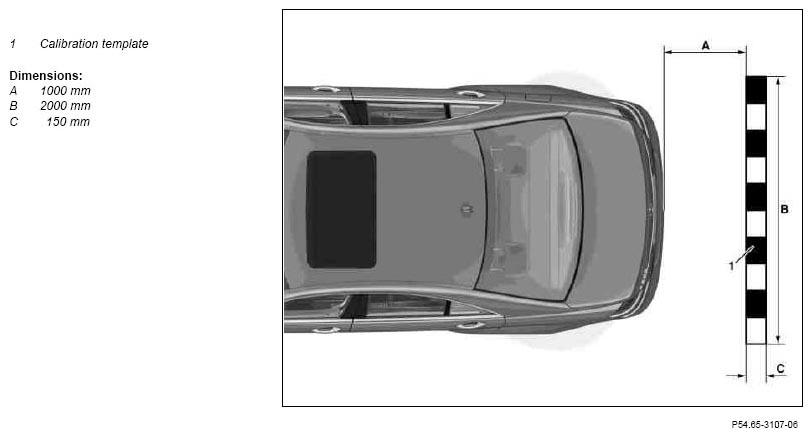

Align the calibration template (1) parallel and central to the vehicle rear on the floor as per dimension (A) |
If necessary fabricate the calibration template (1) as per the dimensions (B, C) (e.g out of wood or cardboard packaging) and provide with contrast strips. |
|
| 3 |
Connect Star Diagnosis, read out fault memory and calibrate reversing camera |
See the menu item "Reversing camera control unit" for instructions. |
AD00.00-P-2000-04A |
