Night View Assist, block diagram - GF54.30-P-0005-03LE

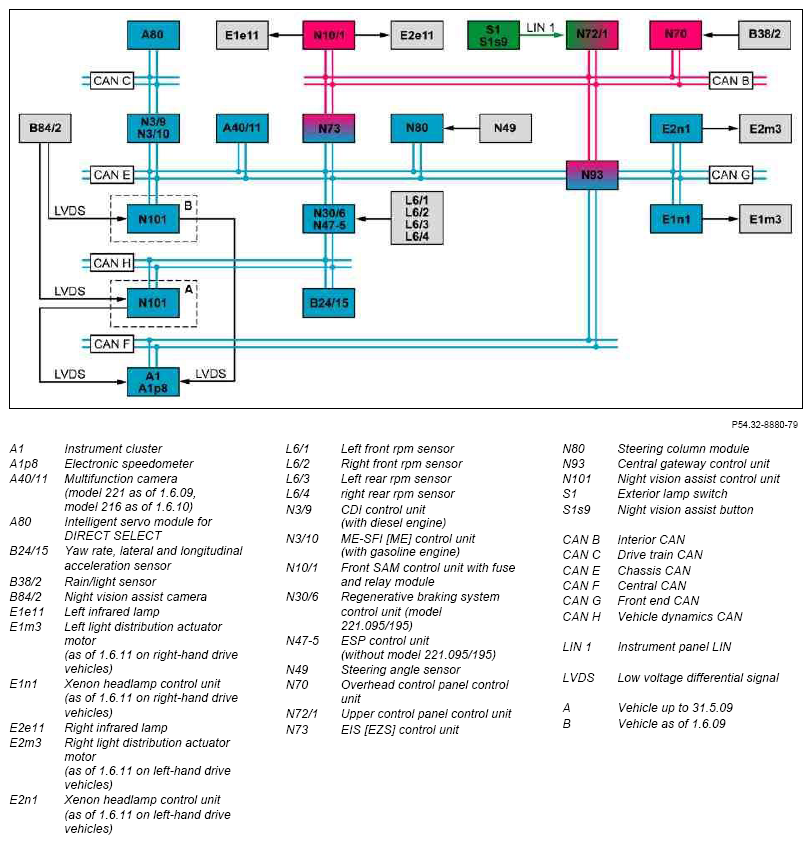

Fig 1: Night View Assist Block Diagram

G07509201

Courtesy of MERCEDES-BENZ USA
