Instrument cluster (IC), networking of components - GF54.30-P-0002-06SX

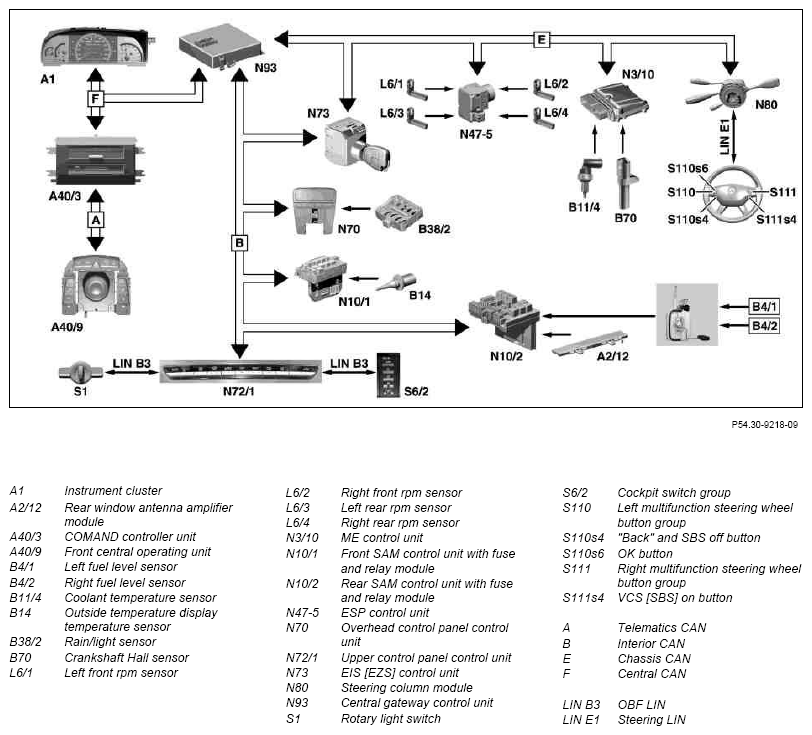

Fig 1: Instrument Cluster Components Networking

Courtesy of MERCEDES-BENZ USA

Networking of components shown on model 221 with engine 272 up to 31.8.06
