Instrument cluster (IC), block diagram - GF54.30-P-0002-01LE

Shown up to 31.5.09

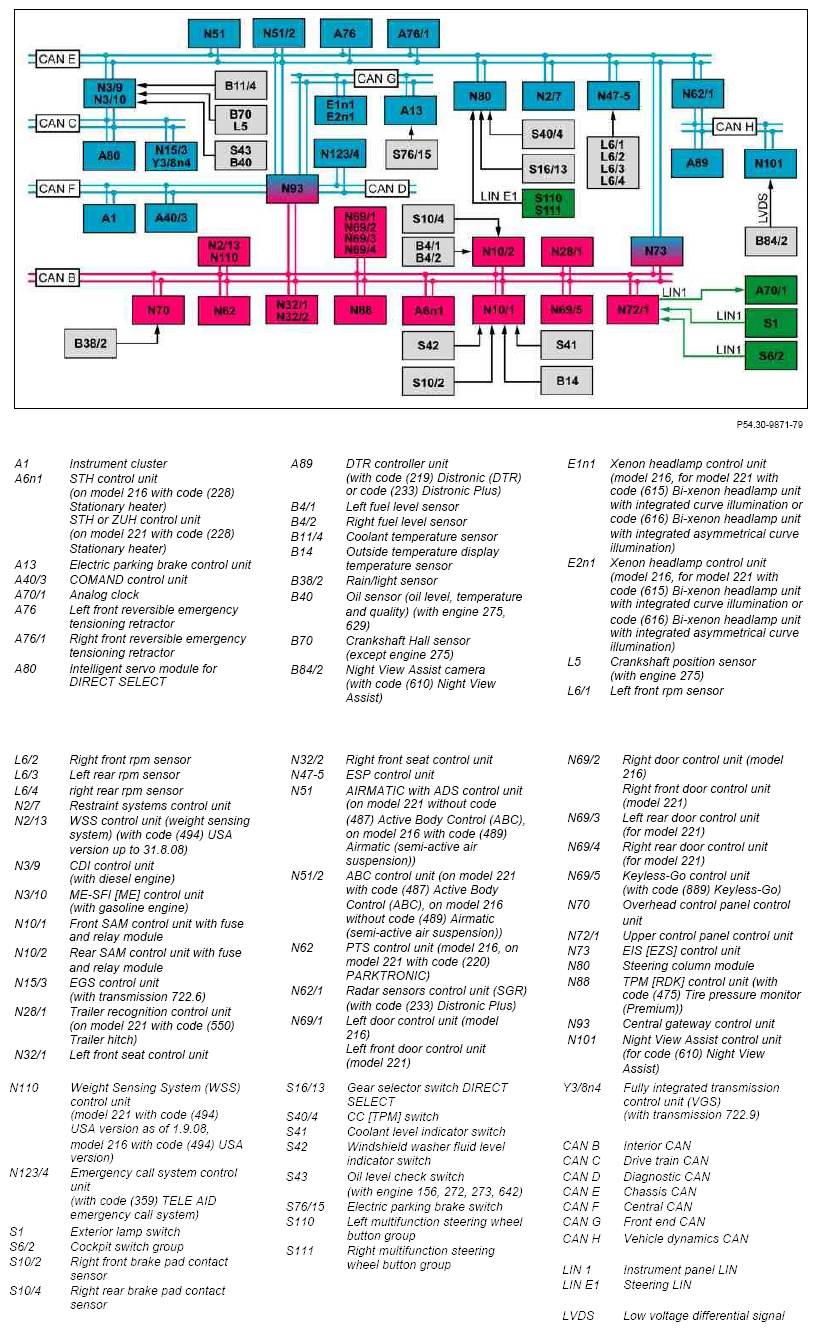

Fig 1: Instrument Cluster Block Diagram (Shown Up To 31.5.09)

Courtesy of MERCEDES-BENZ USA

Shown as of 1.6.09

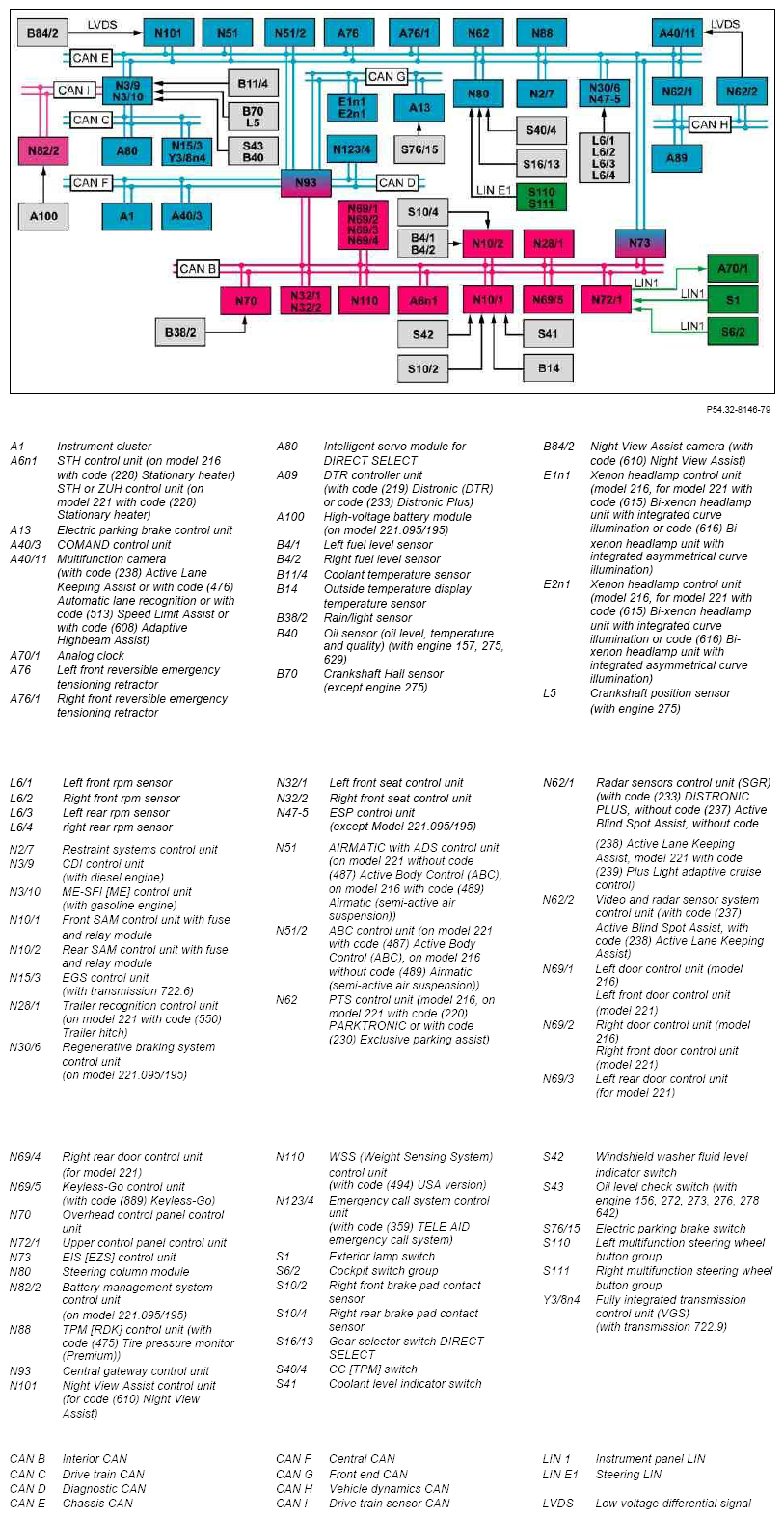

Fig 2: Instrument Cluster Block Diagram (Shown As Of 1.6.09)

Courtesy of MERCEDES-BENZ USA
