Cockpit central display, location of components - GF54.30-P-0004-01SXC

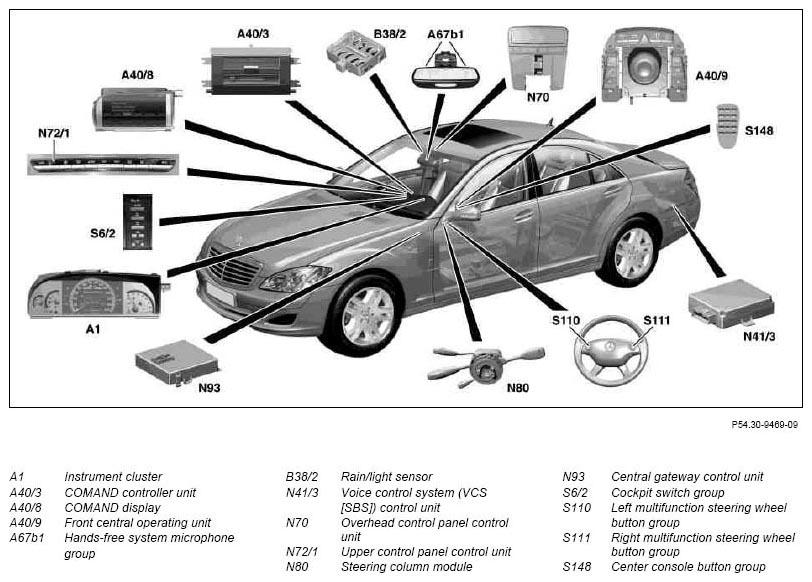

Fig 1: Identifying Cockpit Central Display Components Location (Illustrated On Model 221)

Courtesy of MERCEDES-BENZ USA

Illustrated on model 221
