Attention assist, block diagram - GF54.30-P-0009-03LE

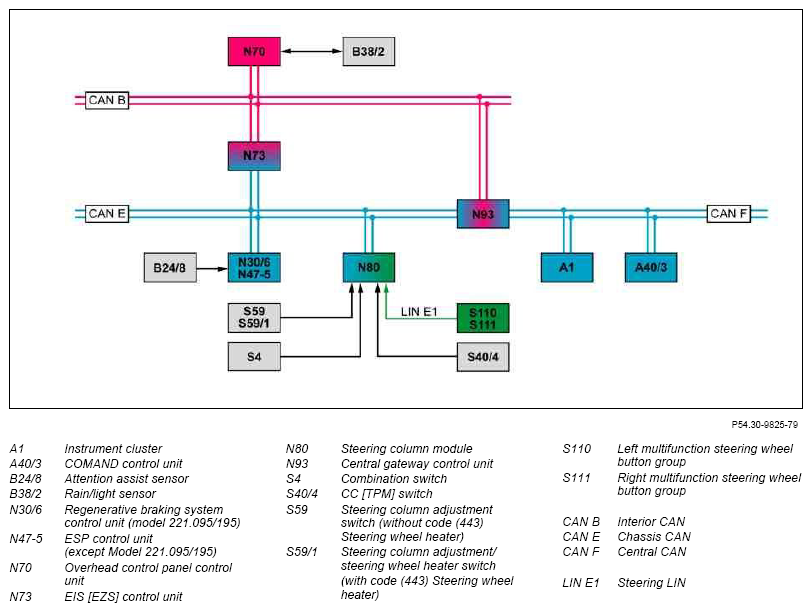

Fig 1: Attention Assist Block Diagram

G07509207

Courtesy of MERCEDES-BENZ USA
