Stamp in vehicle identification number - AR60.00-P-0800SX

MODEL 221, 216

Illustrated on model 221

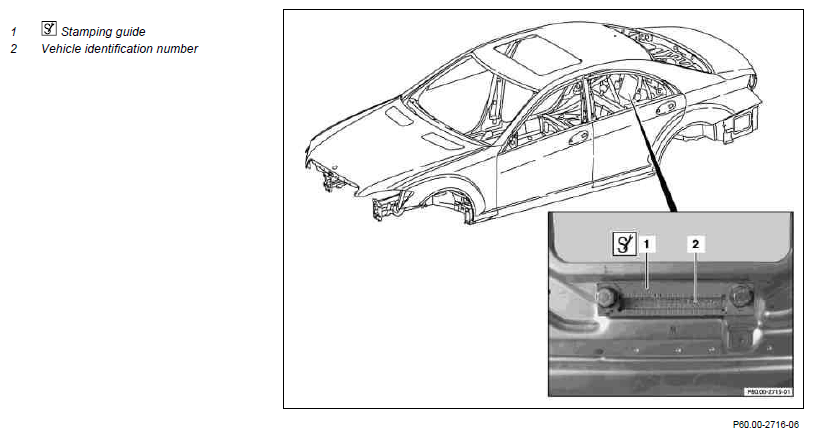

Fig 1: Identifying Stamping Guide And Vehicle Identification Number

Courtesy of MERCEDES-BENZ USA

	Product liability, trademark and traffic laws		AH60.00-P-0800-01Z
	Vehicle identification number	All EC vehicles	AH60.00-P-0800-02A
	Vehicle identification number (2)	All vehicles with USA version, code 491, 494	AH60.00-P-0800-02B
1	Install stamping guide (1).		AR60.00-P-0800-01SX
		Stamping guide	*171589006300
			Drill (electric/pneumatic)
			Wet/dry vacuum cleaner
2	Punch in vehicle identification number (2).		AR60.00-P-0800-02SX
		Stamping guide	*171589006300
		Set of number stamps	*140589266300
		Set of letter stamps	*140589266305
		Zinc dust paint suitable for spot welding	*BR00.45-Z-1001-07A
		Rubber pad	*BR00.45-Z-1001-15A
3.1	Cross out vehicle identification number (2) and punch into spare field.	Only if vehicle identification number (2) was punched in incorrectly previously.	AR60.00-P-0800-05SX
		Stamping guide	*171589006300
		Set of number stamps	*140589266300
		Set of letter stamps	*140589266305
		Zinc dust paint suitable for spot welding	*BR00.45-Z-1001-07A
		Rubber pad	*BR00.45-Z-1001-15A

Fig 2: Identifying Stamping Guide (171 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Set Of Number Stamps (140 589 26 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Set Of Letter Stamps (140 589 26 63 05)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42
BR00.45-Z-1001-15A	Rubber pad	A 110 987 00 39
