Crossing out vehicle identification number and restamp in spare field - AR60.00-P-0800-05SX

Fig 1: Identifying Stamping Guide (171 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Set Of Number Stamps (140 589 26 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Set Of Letter Stamps (140 589 26 63 05)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42
BR00.45-Z-1001-15A	Rubber pad	A 110 987 00 39

Cross out incorrect vehicle identification number in punch field (area B) with letter stamp (4) "X".
The required position for the punch field (area B) or the reserve field (area C) can be determined by turning the window plate (1).
Turn window plate (1) to reserve field (area C)
Illustrated on model 221

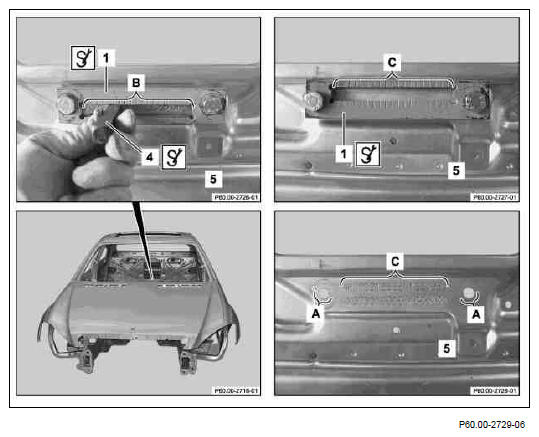

Fig 4: Identifying Window Plate, Letter Stamp And Reserve Field Area
Courtesy of MERCEDES-BENZ USA
Start with "Mercedes star" symbol punch at left in window plate (1)
The tip of the Mercedes star must point upward in the script.
Move forward with each subsequent number punch one increment on the scale in the window plate (1) until the complete vehicle identification number and the final Mercedes star have been punched on the rear partition wall (5) (area C).
Remove stamping guide.
Coat holes with zinc dust paint (area A).
Close holes with rubber buffer (area A).
