Remove/install brake fluid reservoir - AR42.10-P-0301SX
MODEL 216.### 1#
MODEL 221.### 1#
| Remove/install | |||
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||

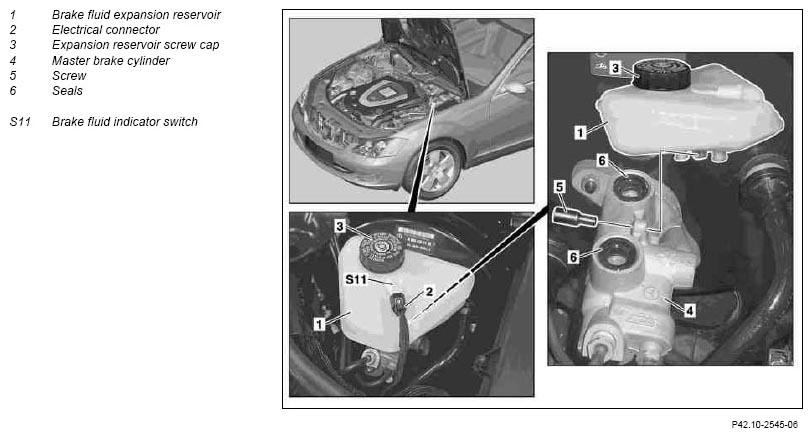

| 1 | Unscrew screw cap (3) from expansion reservoir (1) | ||
| 2 | Suction off brake fluid from the expansion reservoir (1) | ||
| 3 | Disconnect the electrical connector (2) from the brake fluid indicator switch (S11) | ||
| 4 | Remove screw (5) | *BA42.10-P-1002-05J | |
| 5 | Detach expansion reservoir (1) from master brake cylinder (4) | ||
| *129589009100 | |||
| 6 | Install in the reverse order | ||
| Checking | |||
| 7 | Check brake system for leaks in the area of the expansion reservoir (1) |
MASTER BRAKE CYLINDER
| Number | Designation | Model 216 | Model 221 | |
|---|---|---|---|---|
| BA42.10-P-1002-05J | Bolt, reservoir to master brake cylinder | Nm | 4 | 4 |
