Adaptive Brake (ABR) block diagram - GF42.47-P-0001-03SX

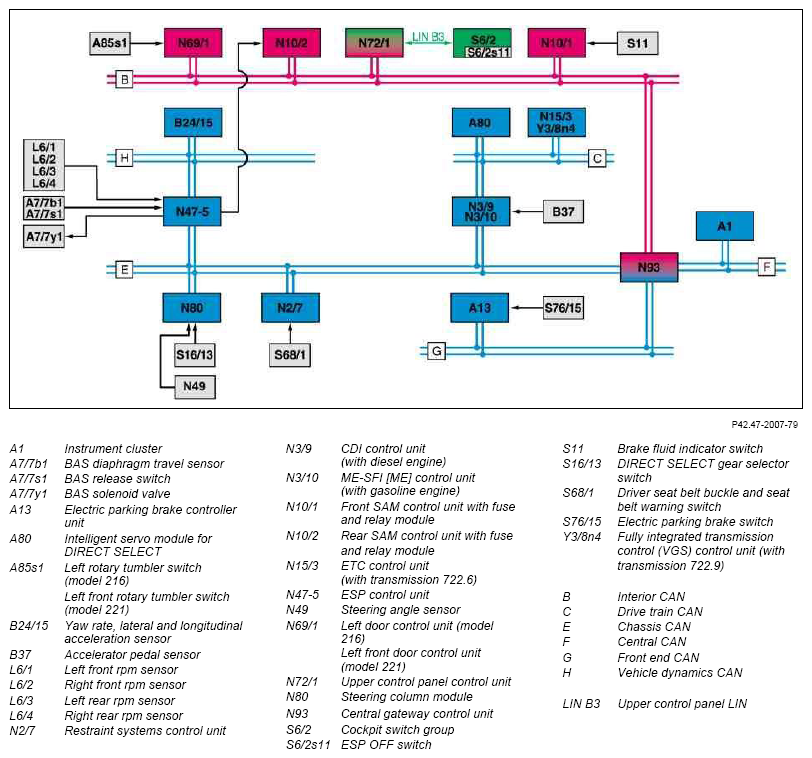

Fig 1: Adaptive Brake (ABR) Block Diagram

G07513156

Courtesy of MERCEDES-BENZ USA
