| A0 |
Explanation of color codes |
48 L |
| A85/1 |
Right door lock unit |
44 K |

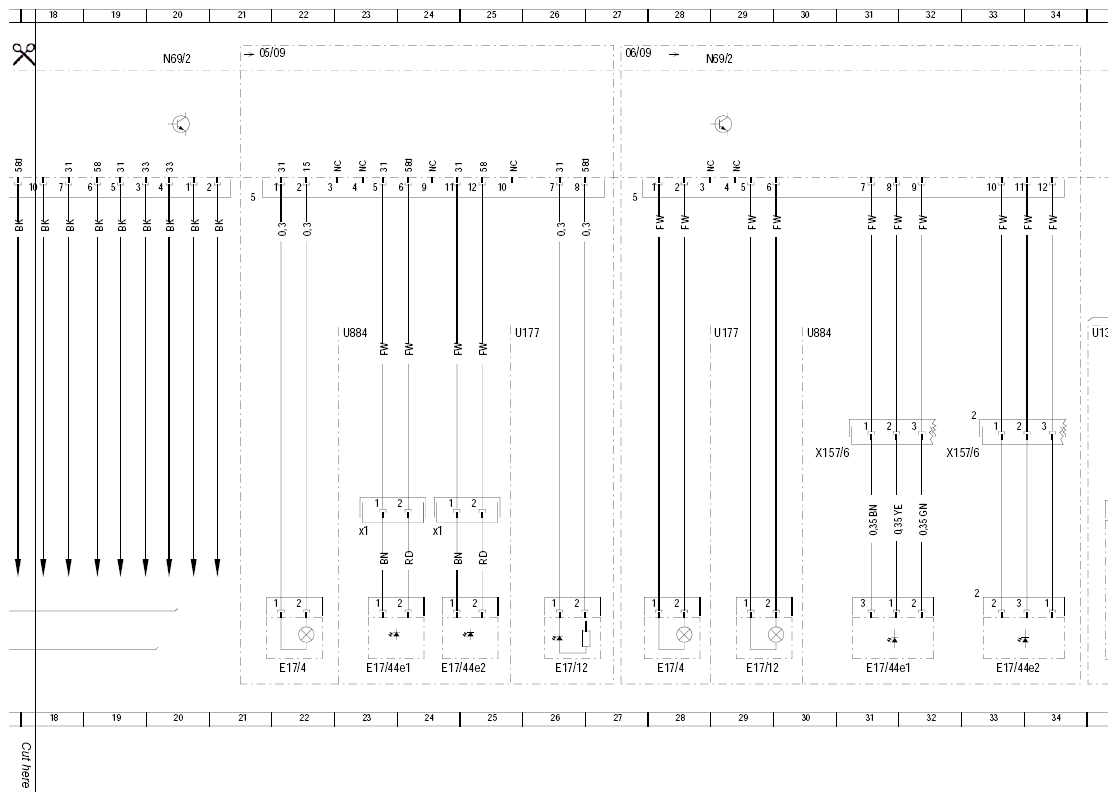

| E17/12 |
Right door inside handle illumination |
25 L |
| E17/4 |
Right door entrance and exit lamp |
21 L |
| E17/44e1 |
Right door trim strip illumination, lamp 1 |
22 L |
| E17/44e2 |
Right door trim strip illumination, lamp 2 |
23 L |

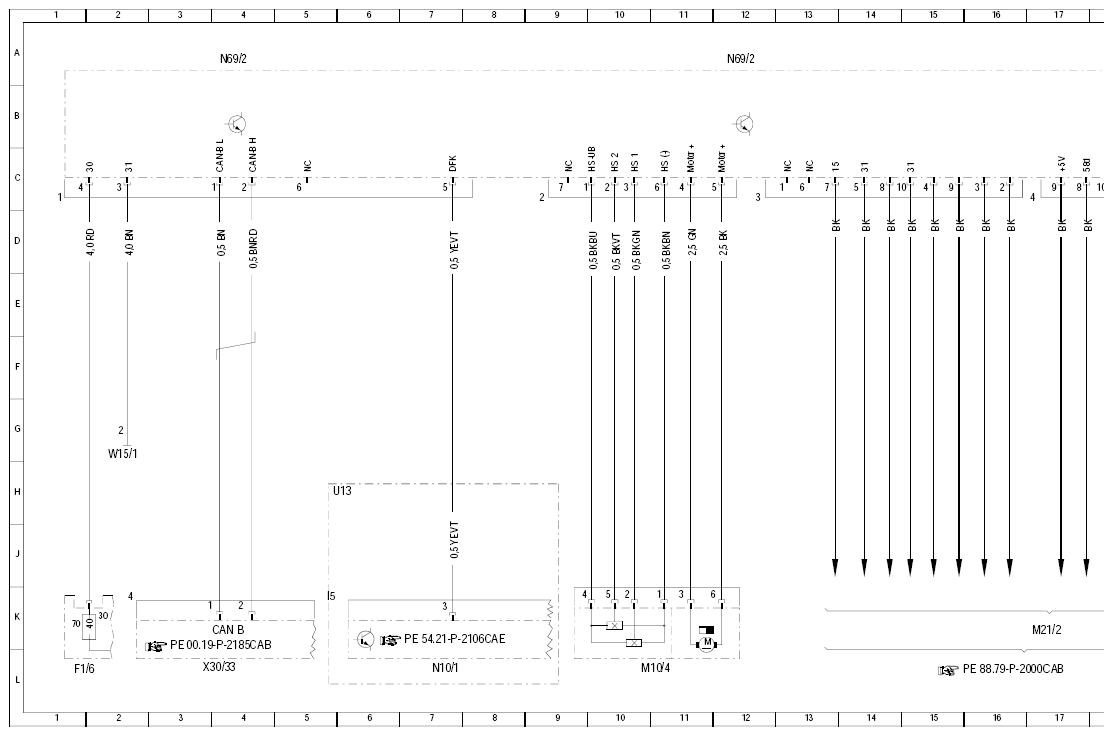

| F1/6 |
Right instrument panel fuse box |
1 L |
| F1/6f70 |
Fuse 70 |
1 K |
| M10/4 |
Right front power window motor |
10 L |
| M21/2 |
Right electrically adjustable and heated exterior mirror |
16 K |
| N10/1 |
Front SAM control module with fuse and relay module |
7 L |
| N69/2 |
Right door control module |
4 A |
| N69/2 |
Right door control module |
12 A |
| N69/2 |
Right door control module |
20 A |
| N69/2 |
Right door control module |
28 A |
| N69/2 |
Right door control module |
36 A |
| N69/2 |
Right door control module |
44 A |

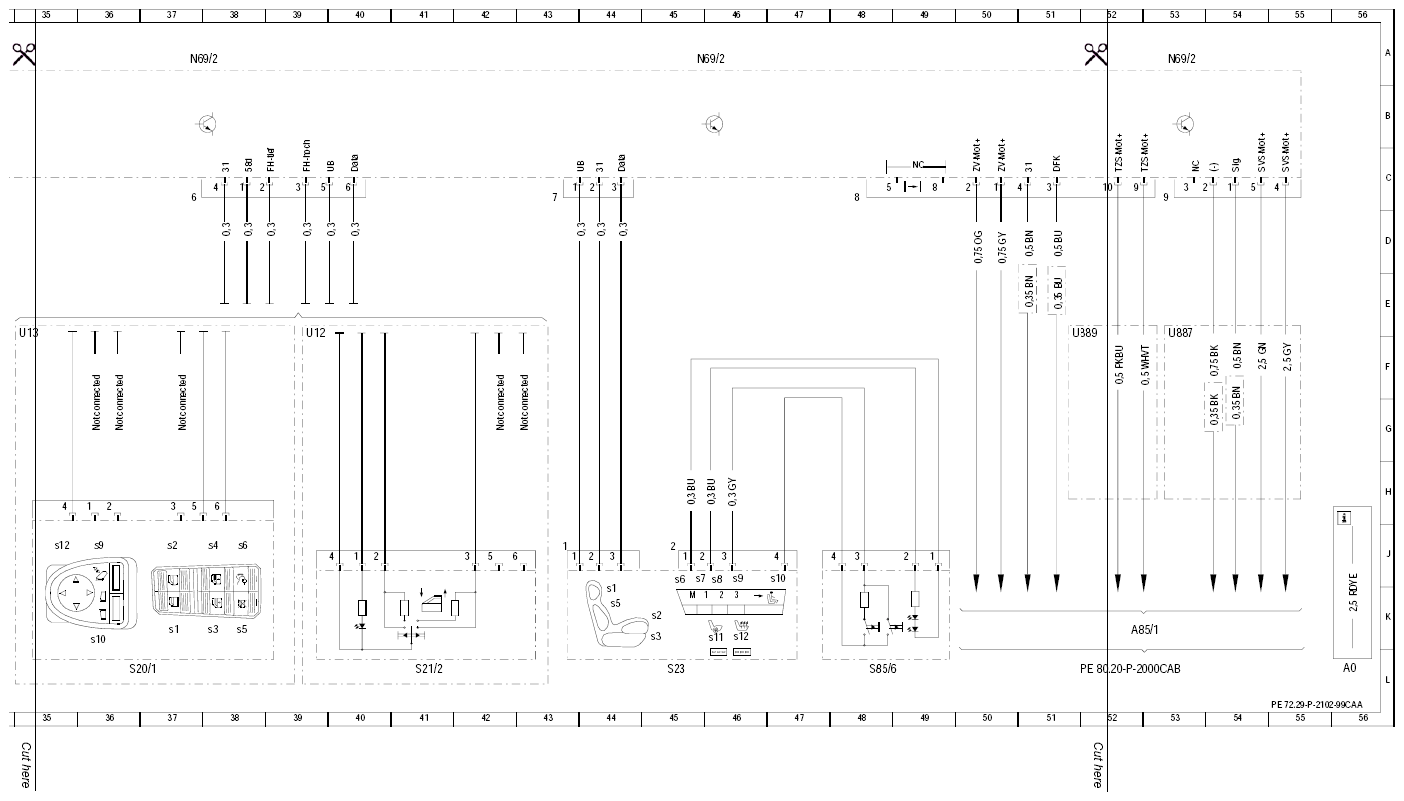

| S20/1 |
Driver power window, outside mirror and trunk lid switch group |
28 L |
| S20/1s1 |
Left front power window switch |
28 K |
| S20/1s10 |
Left/right outside mirror adjustment selection switch |
27 L |
| S20/1s12 |
Outside mirror adjustment rocker switch |
26 J |
| S20/1s2 |
Right front power window switch |
28 J |
| S20/1s3 |
Left rear power window switch |
29 K |
| S20/1s4 |
Right rear power window switch |
29 J |
| S20/1s5 |
Rear side windows child safety lock switch |
29 K |
| S20/1s6 |
Trunk lid open/close switch |
29 J |
| S20/1s9 |
Exterior mirror fold-in/fold-out switch |
27 J |
| S21/2 |
Front passenger power window switch |
32 L |
| S23 |
Right front seat operation switch group |
36 L |
| S23s1 |
Head restraint adjustment switch |
35 K |
| S23s10 |
Left or right seat adjustment selection switch |
37 K |
| S23s11 |
Seat ventilation switch |
37 K |
| S23s12 |
Heated seat switch |
37 K |
| S23s2 |
Seat cushion forward/back switch |
36 K |
| S23s3 |
Fore/aft, height and inclination adjustment switch |
36 K |
| S23s5 |
Backrest switch |
35 K |
| S23s6 |
Memory store button switch |
36 K |
| S23s7 |
Memory 1 switch |
36 K |
| S23s8 |
Memory 2 switch |
37 K |
| S23s9 |
Memory 3 switch |
37 K |
| S85/6 |
Right Interior CL [ZV] switch |
40 L |
| U12 |
Valid for left-hand steering |
31 F |
| U13 |
Valid for right-hand steering |
5 H |
| U13 |
Valid for right-hand steering |
26 F |
| U13 |
Valid for right-hand steering |
38 H |
| U177 |
Not valid for ambiance illumination |
22 F |
| U887 |
Valid for power closing |
44 F |
| U889 |
Valid for additional door lock |
43 F |
| W15/1 |
Ground (right footwell) |
2 H |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
3 L |
