| A0 |
Explanation of color codes |
64 L |
| A60 |
Vehicle-sensitive seatbelt lock sensor |
14 L |

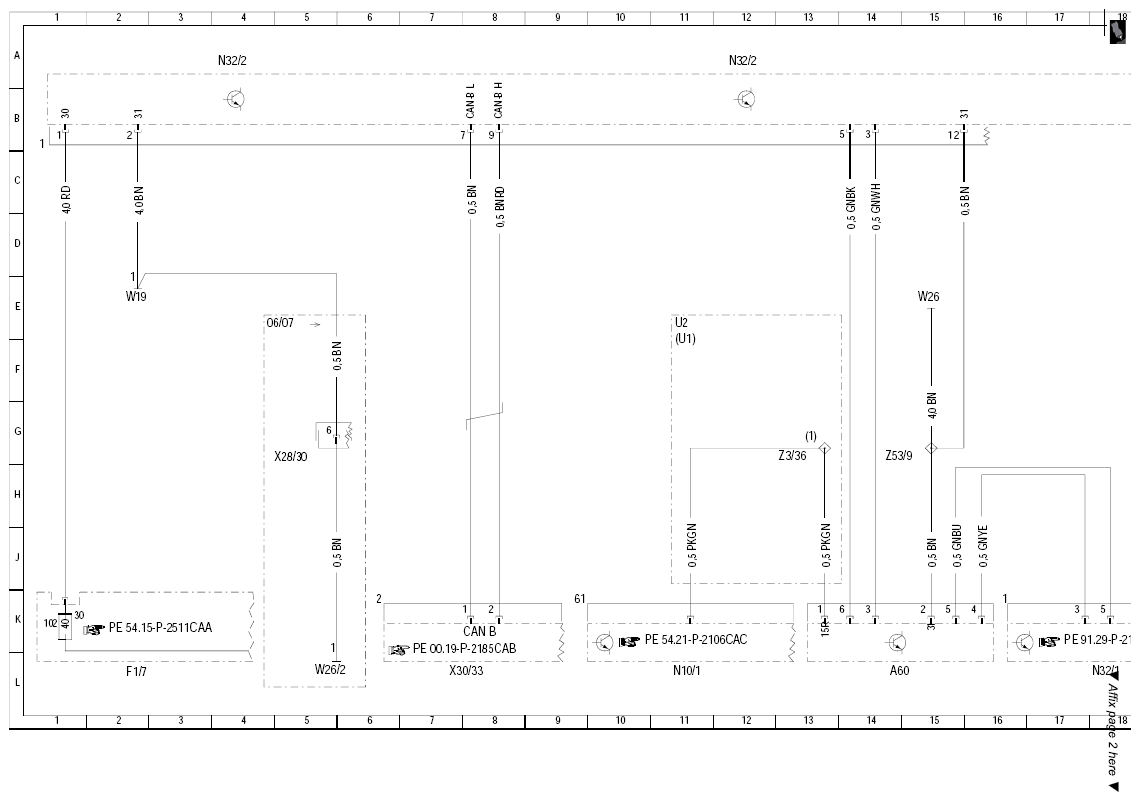

| F1/7 |
Left instrument panel fuse box |
2 L |
| F1/7f102 |
Fuse 102 |
1 K |
| K18/3 |
Right front seat belt lock relay module |
21 L |
| K18/5 |
Right front seat belt comfort solenoid |
31 L |
| K18/5 |
Right front seat belt comfort solenoid |
35 L |

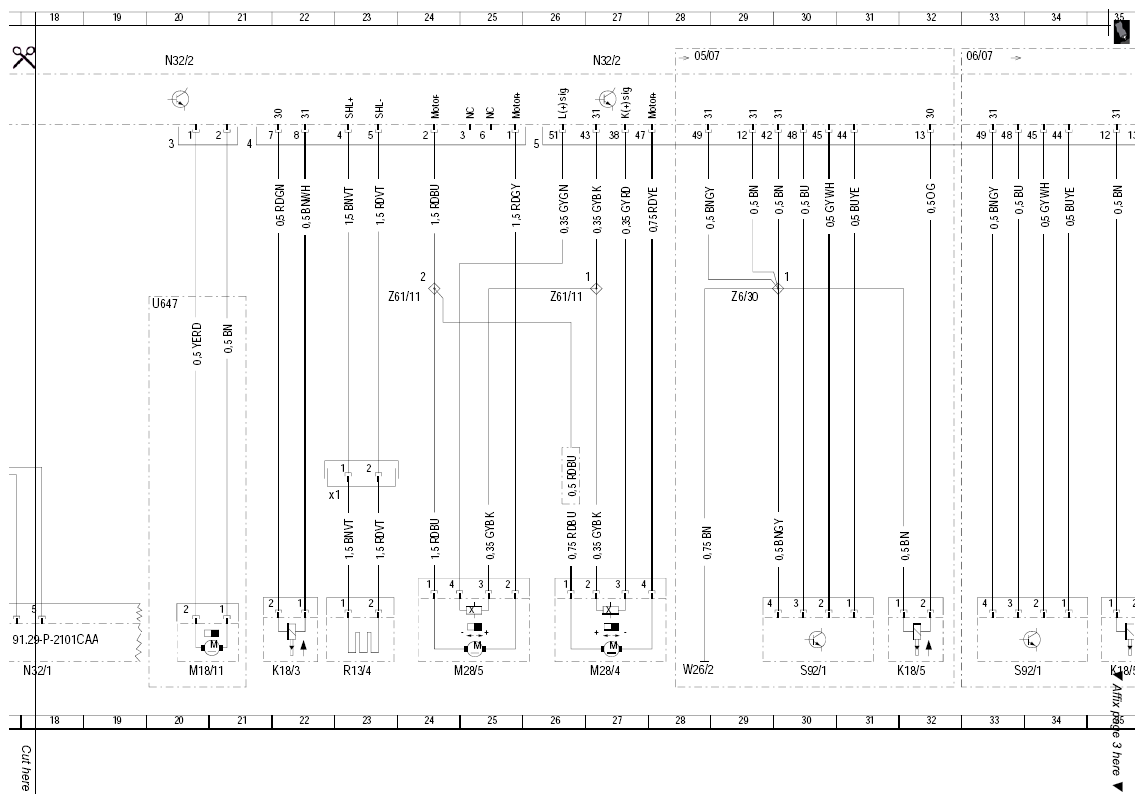

| M18/11 |
Right front seat cushion ventilation motor group |
20 L |

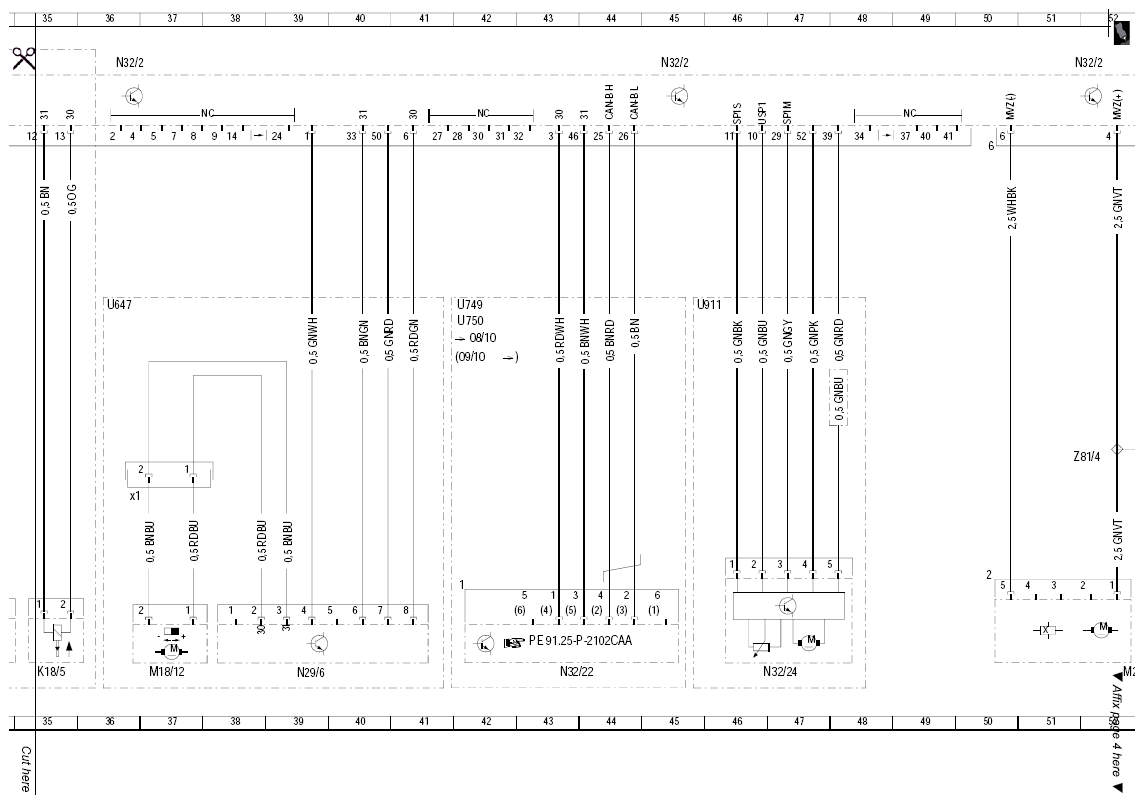

| M18/12 |
Right front seat backrest ventilation motor group |
37 L |
| M18/12x1 |
Right front seat backrest ventilation motor group connector |
36 H |

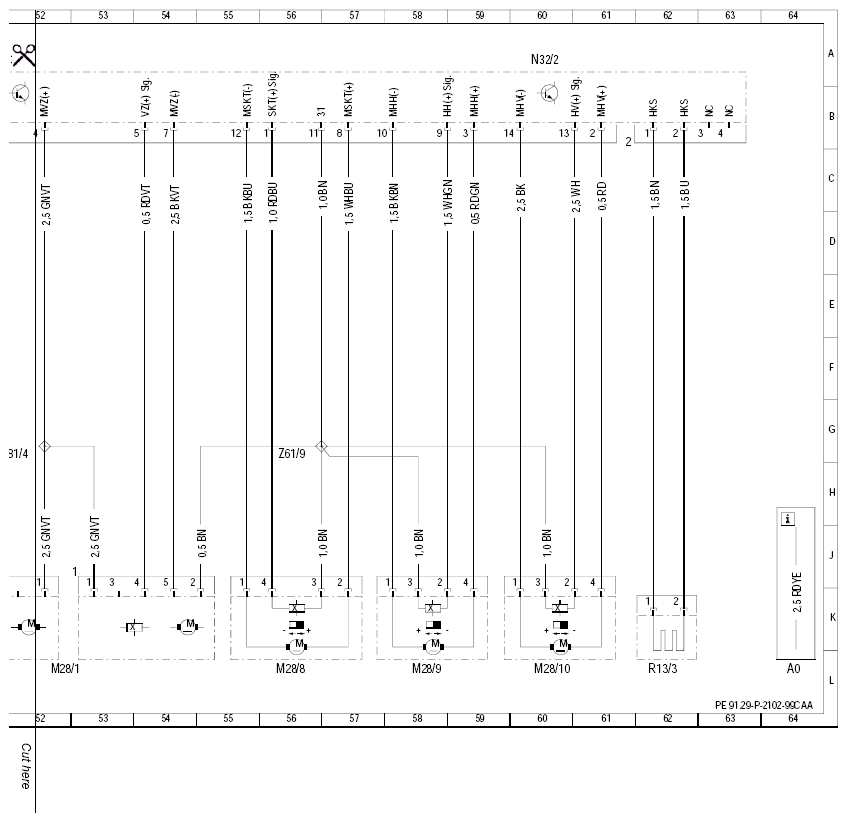

| M28/1 |
Right front seat fore/aft adjustment motor |
52 L |
| M28/10 |
Right front seat height adjustment motor |
60 L |
| M28/4 |
Right front head restraint motor |
27 L |
| M28/5 |
Right front backrest angle adjustment motor |
24 L |
| M28/8 |
Right front seat cushion fore/aft motor |
56 L |
| M28/9 |
Right front seat cushion inclination motor |
58 L |
| N10/1 |
Front SAM control module with fuse and relay module |
11 L |
| N29/6 |
Right front seat ventilation blower regulator |
39 L |
| N32/1 |
Left front seat control module |
17 L |
| N32/2 |
Right front seat control module |
4 A |
| N32/2 |
Right front seat control module |
12 A |
| N32/2 |
Right front seat control module |
20 A |
| N32/2 |
Right front seat control module |
27 A |
| N32/2 |
Right front seat control module |
36 A |
| N32/2 |
Right front seat control module |
44 A |
| N32/2 |
Right front seat control module |
51 A |
| N32/2 |
Right front seat control module |
60 A |
| N32/22 |
Right front dynamic seat control module |
43 L |
| N32/24 |
Front passenger lumbar support regulator control unit |
46 L |
| R13/3 |
Right front seat heated cushion |
62 L |
| R13/4 |
Right front backrest heated cushion |
22 L |
| R13/4x1 |
Right front backrest heater element connector |
22 H |
| S92/1 |
Right front seat backrest angle microswitch |
30 L |
| S92/1 |
Right front seat backrest angle microswitch |
33 L |
| U647 |
Valid for seat ventilation |
36 E |
| U749 |
Valid for multicontour seat (MCS [MKS]) |
41 E |
| U750 |
Valid for dynamic seat (DS [FDS]) |
41 E |
| U911 |
Valid for lumbar support |
45 E |
| W19 |
Ground (right front seat crossmember) |
2 E |
| W26 |
Ground (restraint systems control module) |
15 E |
| W26/2 |
Ground (seat, right front sidebag) |
5 L |
| W26/2 |
Ground (seat, right front sidebag) |
28 L |
| X28/30 |
Passenger-side FFS [RBA]/seat airbag separation point |
4 H |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
7 L |
| Z3/36 |
ACSR [AKSE] circuit 15R connector sleeve |
12 H |
| Z53/9 |
Interior sleeve connector, airbag circuit 31 |
14 H |
| Z6/30 |
Circuit 31 connector sleeve |
29 E |
| Z61/11 |
Front passenger seat backrest/head restraint motor connector sleeve |
23 E |
| Z61/11 |
Front passenger seat backrest/head restraint motor connector sleeve |
26 E |
| Z61/9 |
Wiring harness connector sleeve for seat, terminal 31K |
56 H |
| Z81/4 |
Circuit 58d in FSS [RBA] connector sleeve |
51 H |
