Remove/install cover below instrument panel (right) - AR68.10-P-1520SX

MODEL 216.3, 221.0 /1

Illustrated on model 221

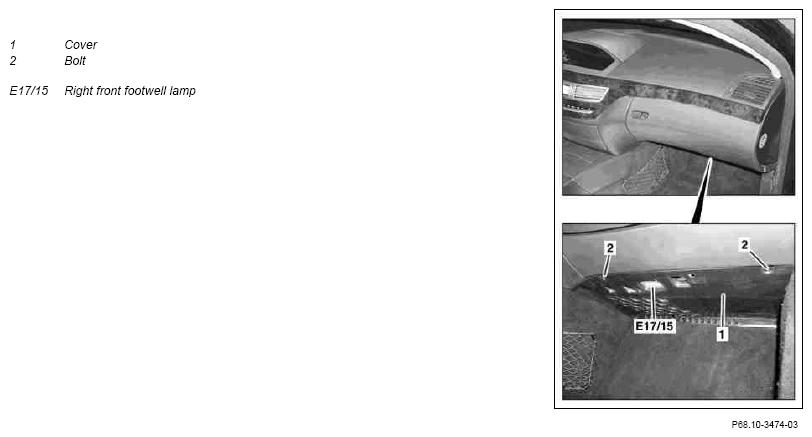

Fig 1: Identifying Right Front Footwell Lamp

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move front passenger seat to end position toward rear
2	Unscrew bolts (2), lower cover (1) and disconnect electrical connector from right front footwell lamp (E17/15)	Installation:  Guide pins at rear of cover (1) into corresponding lug on air conditioner housing.
3	Remove cover (1) out of the footwell
4	Install in the reverse order
