Convert side paneling - AZ88.00-P-0001-04SC

Check components removed from standard bumper before assembly and replace if damaged.

Pay attention to paint damage.

Fig 1: Identifying Longitudinal Member Paneling, Rear, Center And Bottom Bracket

Courtesy of MERCEDES-BENZ USA

1. Install front bottom bracket (2), center bottom bracket (3) and rear bottom bracket (4) into longitudinal member paneling (1).

   Ensure that the brackets are arrested correctly at bottom in the longitudinal member paneling (1).

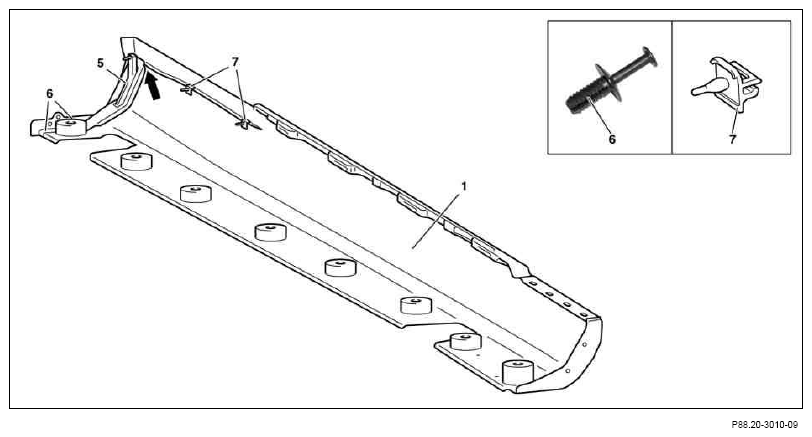

   Fig 2: Identifying Longitudinal Member Paneling, Expansion Rivet And Mounting Clips (Rear)

   Courtesy of MERCEDES-BENZ USA
2. Insert rear bracket (5) into longitudinal member paneling (1) and fasten with expansion rivet (6).
3. Insert mounting clips (7) into longitudinal member paneling (1).

   The rear brackets (5) must be inserted correctly into the longitudinal member (1) (see arrow).

   Use new clips (7) to ensure that the longitudinal member paneling (1) is seated securely.
