Windshield washer system - inspect fluid level, adjust to correct level - AP82.35-P-8210SX

MODEL 216

MODEL 221.0 /1

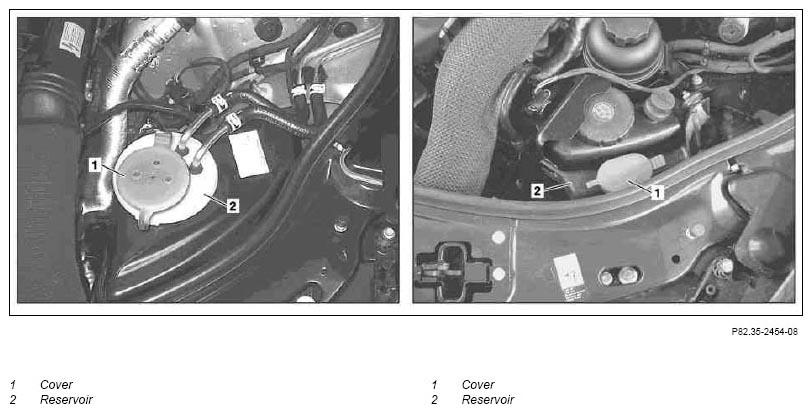

Fig 1: Identifying Cover And Reservoir (Vehicle Without/With Active Body Control)

Courtesy of MERCEDES-BENZ USA

Vehicles without Active Body Control (ABC), code 487

Vehicles with Active Body Control (ABC), code 487

	Checking
	Risk of fire and explosion  caused by igniting windshield cleaning agent and antifreeze and their vapors. Risk of poisoning  caused by swallowing windshield cleaning agent and antifreeze and inhaling their vapors. Risk of injury  caused by irritation in the event of contact of windshield cleaning agents and antifreezes with eyes, mucous membrane and skin	Wear protective clothing and tight-fitting safety glasses. Keep away from open flames, fire and ignition sources. Avoid contact with eyes, mucous membrane and skin. Do not eat, drink or smoke when dealing with windshield cleaning agents and antifreezes. Do not inhale vapors, ensure adequate ventilation. Only store windshield cleaning agents and antifreezes in tightly sealed original containers and which are inaccessible to children.	AS82.35-Z-0001-01A
1	Open engine hood and raise to vertical position
2	Open hood (1) and fill reservoir (2) of windshield washer system with windshield washer fluid	Pay attention to mixing ratio according to table on the packaging of the windshield washer fluid concentrate. Windshield washer fluid	*BF82.35-P-1001-01F
	Windshield washer fluid concentrate	Sheet 371.0	BB00.40-P-0371-00A
3	Seal reservoir (2) of windshield washer system with cap (1)
4	Close engine hood
