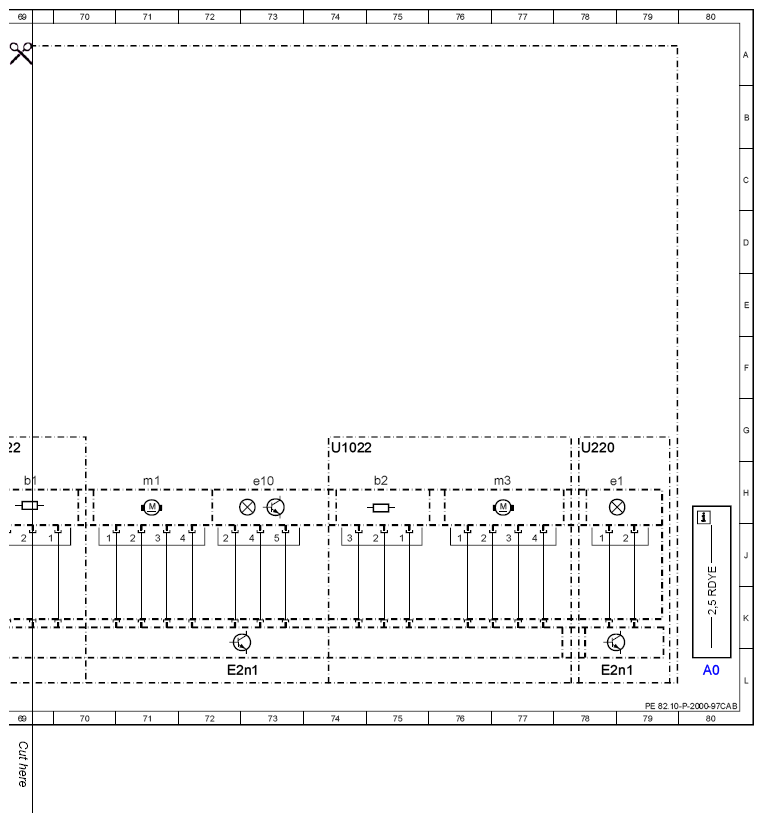

| A0 |
Color code key |
80L |
| E1 |
Left front lamp unit |
9K |
| E1 |
Left front lamp unit |
44K |
| E2 |
Right front lamp unit |
10K |
| E2 |
Right front lamp unit |
45K |
| E2/3 |
Right daytime running lamps headlamp |
40L |
| E2/3 |
Right daytime running lamps headlamp |
41L |
| E2b1 |
Right active curve illumination position sensor |
31H |
| E2b1 |
Right active curve illumination position sensor |
69H |
| E2b2 |
Right light distribution position sensor |
75H |
| E2e1 |
Right high beam/motorway spotlight |
78H |
| E2e10 |
Right bi-xenon lamp with integral ignition module |
34H |
| E2e10 |
Right bi-xenon lamp with integral ignition module |
73H |
| E2e11 |
Right infrared lamp |
25H |
| E2e11 |
Right infrared lamp |
62H |
| E2e2 |
Right low beam |
22H |

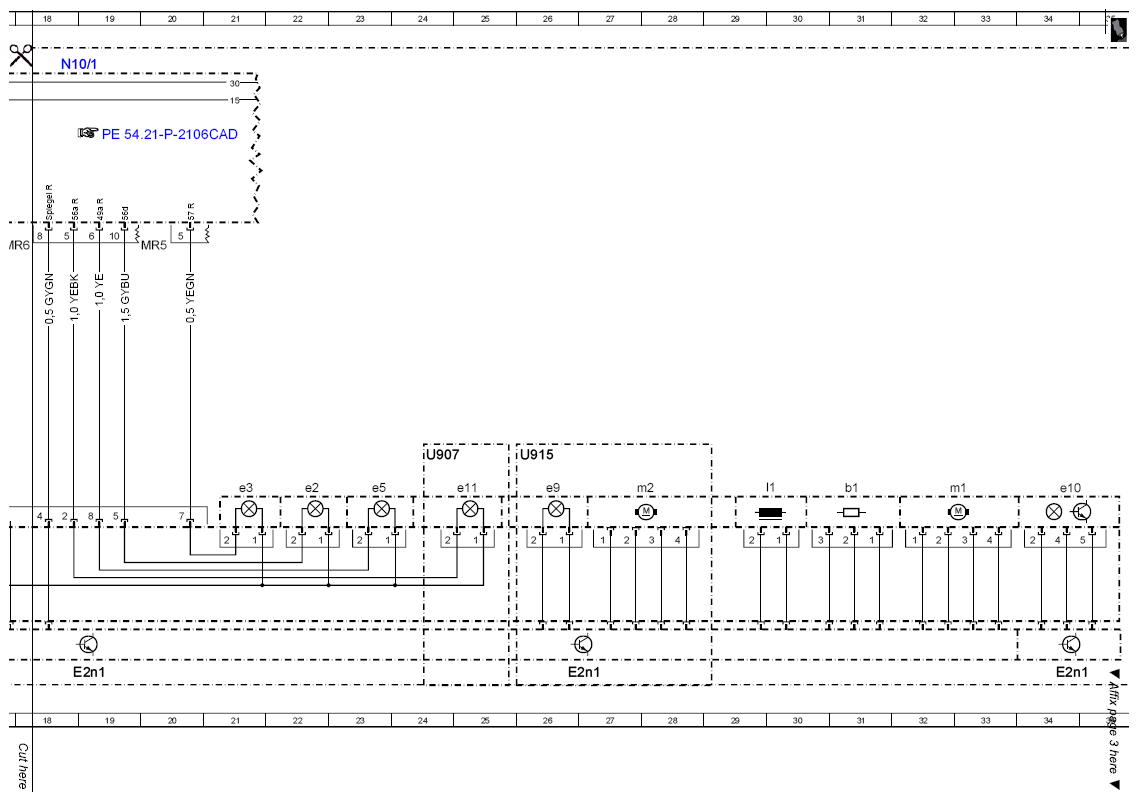

| E2e3 |
Right standing and parking lamp |
21H |

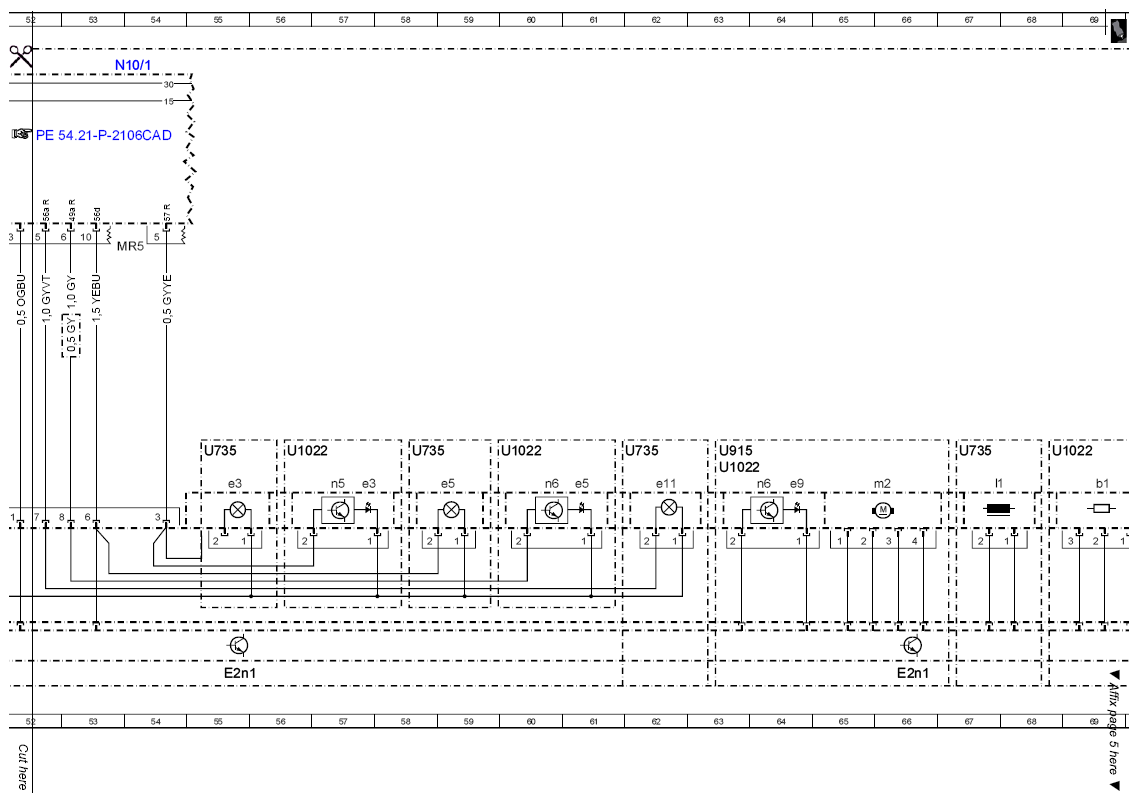

| E2e3 |
Right standing and parking lamp |
55H |
| E2e3 |
Right standing and parking lamp |
57H |
| E2e5 |
Right turn signal lamp |
23H |
| E2e5 |
Right turn signal lamp |
59H |
| E2e5 |
Right turn signal lamp |
61H |
| E2e9 |
Cornering illumination |
26H |
| E2e9 |
Cornering illumination |
64H |
| E2l1 |
Right high beam solenoid |
30H |
| E2l1 |
Right high beam solenoid |
67H |
| E2m1 |
Right headlamp range adjustment motor |
32H |
| E2m1 |
Right headlamp range adjustment motor |
71H |
| E2m2 |
Right dynamic curve illumination motor |
28H |
| E2m2 |
Right dynamic curve illumination motor |
66H |
| E2m3 |
Right light distribution actuator motor |
77H |
| E2n1 |
Xenon headlamp control unit |
11L |
| E2n1 |
Xenon headlamp control unit |
19L |
| E2n1 |
Xenon headlamp control unit |
26L |
| E2n1 |
Xenon headlamp control unit |
34L |
| E2n1 |
Xenon headlamp control unit |
66L |
| E2n1 |
Xenon headlamp control unit |
46L |
| E2n1 |
Xenon headlamp control unit |
55L |
| E2n1 |
Xenon headlamp control unit |
72L |
| E2n1 |
Xenon headlamp control unit |
78L |
| E2n5 |
Right standing and parking light voltage converter |
57H |
| E2n6 |
Right turn signal and cornering light voltage converter |
60H |
| E2n6 |
Right turn signal and cornering light voltage converter |
64H |
| E5/2 |
Right fog lamp |
3L |
| E5/2 |
Right fog lamp |
38L |
| E6/2 |
Right front side-marker lamp {{USA}} |
14H |

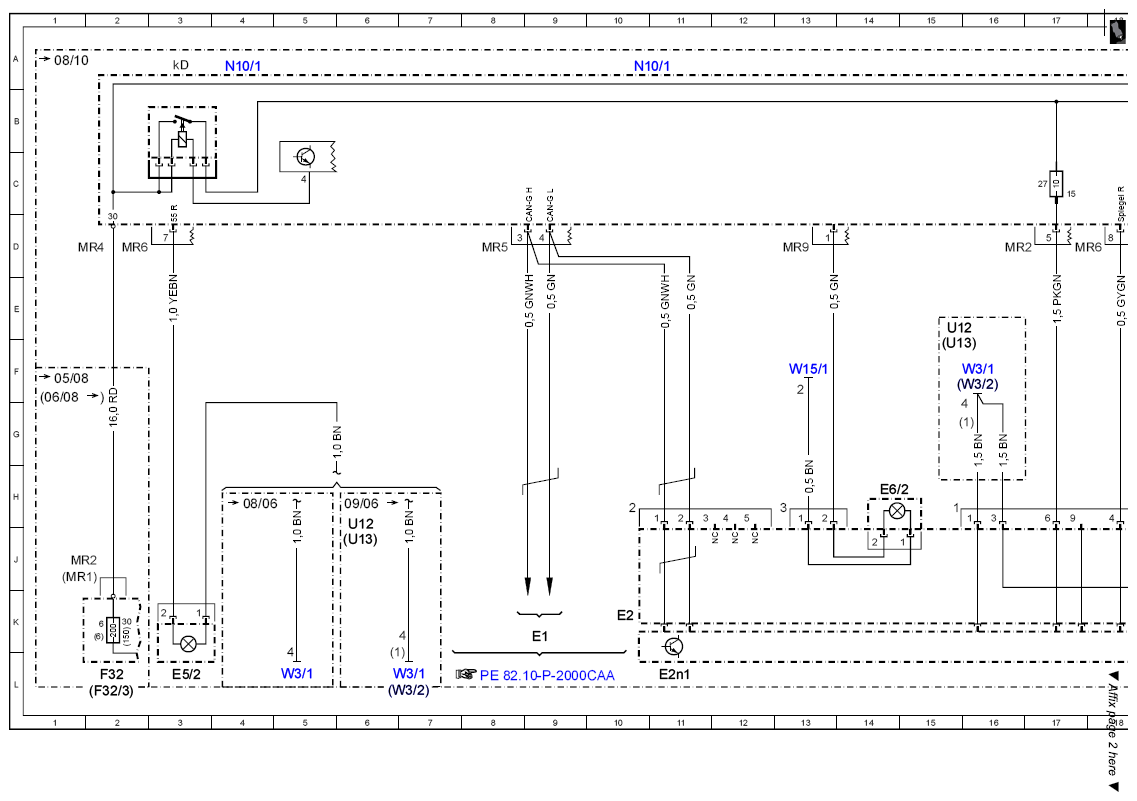

| F32 |
Front prefuse |
2L |
| F32/3 |
Engine compartment prefuse box |
2L |

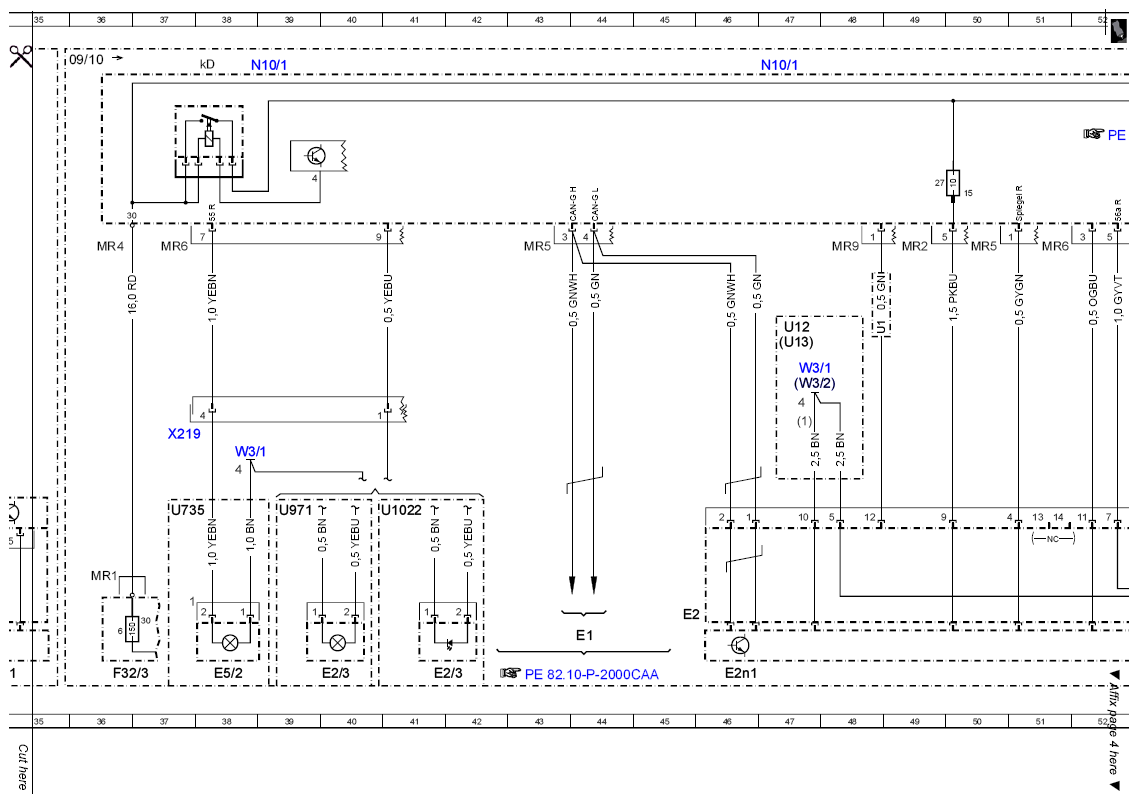

| F32/3 |
Engine compartment prefuse box |
36L |
| F32/3f6 |
Fuse 6 |
2K |
| F32/3f6 |
Fuse 6 |
36K |
| F32f6 |
Fuse 6 |
2K |
| N10/1 |
Front SAM control unit with fuse and relay module |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
10A |
| N10/1 |
Front SAM control unit with fuse and relay module |
18A |
| N10/1 |
Front SAM control unit with fuse and relay module |
39A |
| N10/1 |
Front SAM control unit with fuse and relay module |
53A |
| N10/1 |
Front SAM control unit with fuse and relay module |
47A |
| N10/1f27 |
Fuse |
27 17C |
| N10/1f27 |
Fuse |
27 49C |
| N10/1kD |
Circuit 15 (2)/spare 1 relay (changeover contact) |
3A |
| N10/1kD |
Circuit 15 (2)/spare 1 relay (changeover contact) |
38A |
| U1 |
Valid for {{USA}} |
49E |
| U1022 |
Valid for Intelligent Light System |
40H |
| U1022 |
Valid for Intelligent Light System |
60G |
| U1022 |
Valid for Intelligent Light System |
56G |
| U1022 |
Valid for Intelligent Light System |
63H |
| U1022 |
Valid for Intelligent Light System |
68G |
| U1022 |
Valid for Intelligent Light System |
74G |
| U12 |
Valid for left-hand drive vehicles |
6J |
| U12 |
Valid for left-hand drive vehicles |
15E |
| U12 |
Valid for left-hand drive vehicles |
47E |
| U13 |
Valid for right-hand drive vehicles |
6J |
| U13 |
Valid for right-hand drive vehicles |
15F |
| U13 |
Valid for right-hand drive vehicles |
47F |
| U220 |
Valid without Night View Assist |
78G |
| U735 |
Valid for bi-xenon |
37H |
| U735 |
Valid for bi-xenon |
55G |
| U735 |
Valid for bi-xenon |
58G |
| U735 |
Valid for bi-xenon |
62G |
| U735 |
Valid for bi-xenon |
67G |
| U907 |
Valid for night view assist |
24G |
| U915 |
Valid for cornering illumination |
26G |
| U915 |
Valid for cornering illumination |
63G |
| U971 |
Valid for daytime running lamps |
39H |
| W15/1 |
Ground (right footwell) |
13F |
| W3/1 |
Ground (right front wheelhouse) |
5L |
| W3/1 |
Ground (right front wheelhouse) |
7L |
| W3/1 |
Ground (right front wheelhouse) |
38G |
| W3/1 |
Ground (right front wheelhouse) |
16F |
| W3/1 |
Ground (right front wheelhouse) |
47F |
| W3/2 |
Ground (left front wheelhouse) |
6L |
| W3/2 |
Ground (left front wheelhouse) |
16F |
| W3/2 |
Ground (left front wheelhouse) |
47F |
| X219 |
Daytime running lights/front fog lamps and engine wiring harness connector |
37G |
