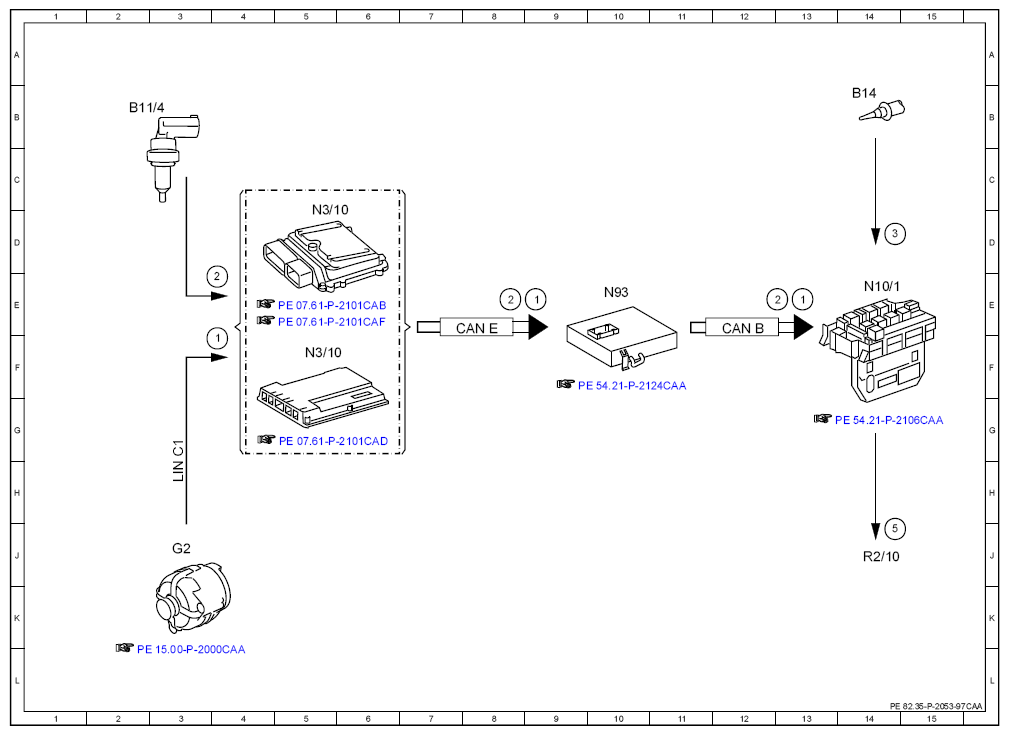

| 1 |
Circuit 61, status |
|
| 1 |
Circuit 61, status |
|
| 1 |
Circuit 61, status |
|
| 2 |
Coolant temperature sensor, signal |
|
| 2 |
Coolant temperature sensor, signal |
|
| 2 |
Coolant temperature sensor, signal |
|
| 3 |
Outside temperature indicator temperature sensor, signal |
|
| 5 |
Wiper park position heater, actuation |
|
| B11/4 |
Coolant temperature sensor |
|
| B14 |
Outside temperature display temperature sensor |
|
| CAN B |
Interior CAN |
|
| CAN E |
Chassis CAN |
|
| G2 |
Alternator |
|
| LIN C1 |
Drive train LIN |
|
| N10/1 |
Front SAM control unit with fuse and relay module |
|
| N3/10 |
ME-SFI [ME] control unit |
|
| N3/10 |
ME-SFI [ME] control unit |
|
| N93 |
Central gateway control unit |
|
| R2/10 |
Wiper park heater |
|
