Remove/install combination switch - AR54.25-P-2800SX

MODEL 216.3, 221.0/1

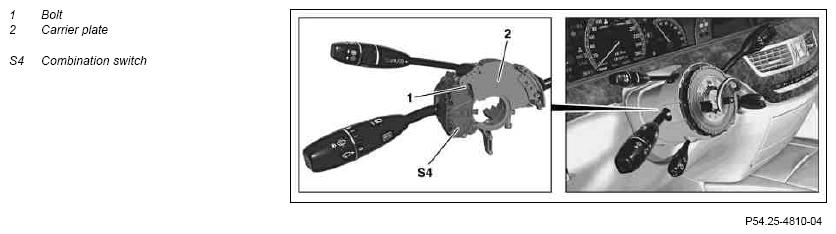

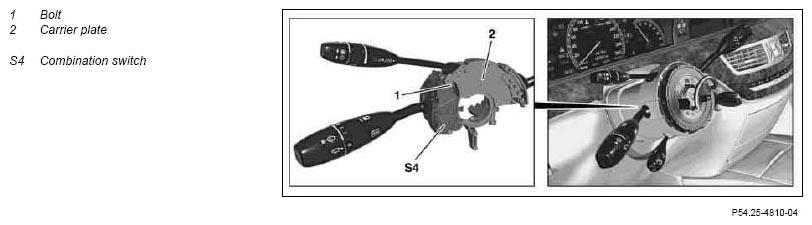

Fig 1: Identifying Combination Switch Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove steering angle sensor	AR46.10-P-0300SX
2	Remove steering column adjustment/steering wheel heater switch	AR54.25-P-2804SX
3	Unscrew screw (1)
4	Remove combination switch (S4) from carrier plate (2)
5	Install in the reverse order
6	Carry out function check of combination switch (S4)
