Remove/install cigarette lighter - AR54.10-P-0030TX

MODEL 168, 170, 171, 197, 203, 204, 207, 208, 209, 210, 211, 216, 219, 221, 230

MODEL 212 except CODE (279) Electronic gear selector

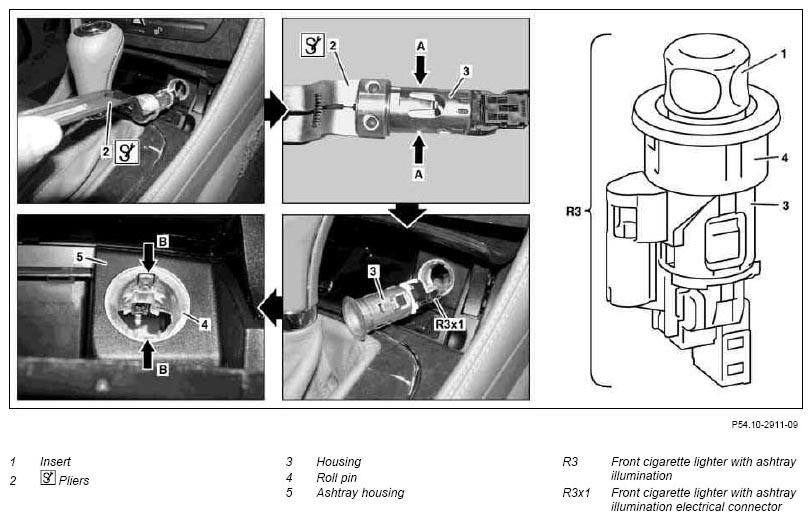

Fig 1: Removing/Installing Cigarette Lighter (Shown On Model 219)

Courtesy of MERCEDES-BENZ USA

Shown on model 219

	Remove/install
1	Switch off the ignition and remove the transmitter key from the EIS control unit	On vehicles with code (889) Keyless Go, keep pressing the KEYLESS-GO start/stop button until the ignition is switched off. Remove the Keyless Go chipcard or transmitter key from vehicle and store beyond reach of the transmitter (at least 2 m).
2.1	Open ashtray	Except model 204, 207, 212
2.2	Remove ashtray housing (5)	Model 204, 207, 212
3	Pull insert (1) out of the housing (3) of the cigarette lighter with front ashtray illumination (R3)
4	Insert pliers (2) into the housing (3) and pull the housing (3) out of the clamping sleeve (4)	The spigots of the pliers (2) must engage in the cutouts of the housing (3) (arrows A).
			*169589003700
5	Disconnect electrical connector of cigarette lighter with front ashtray illumination (R3x1)	Except model 204, 207, 212
6	Unclip clamping sleeve (4) from the ashtray housing by pressing back the catch hooks (arrows B) (5) and remove	Installation:  Pay attention to the correct installation position of the clamping sleeve (4).
7	Install in the reverse order
