Night vision assist camera, component description - GF54.30-P-6220SX
MODEL 221.0/1, 216.3
with CODE (610) Night vision assist
up to Model Year 8
Shown on model 221.0

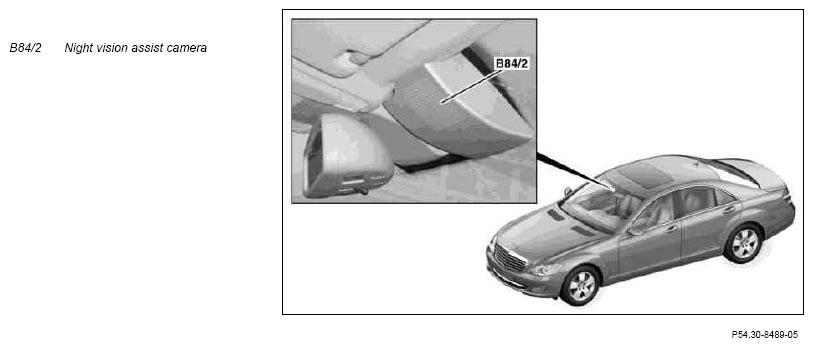

Location
The night view assist camera is located on the right of the windshield in front of the inside rearview mirror unit (A67).
Task
The night view assist camera has a high light sensitivity, it records the infrared-picture and transmits data via the digital video interface (Low-Voltage Differential Signaling (LVDS)) to the Night View Assist control unit (N101).
