Engine diagnosis indicator lamp, location/task/function - GF54.30-P-4102M
MODEL 216, 221 with ENGINE 275.953 except CODE (494) USA version
MODEL 216, 221 with ENGINE 275.982 except CODE (494) USA version

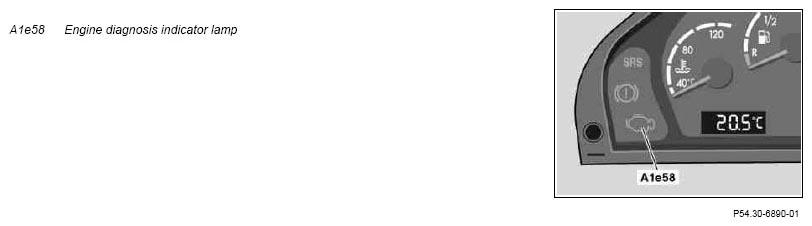

Shown on the instrument cluster of model 240
| Engine diagnosis indicator lamp, location | The engine diagnosis indicator lamp (engine symbol) is located in the instrument cluster. |
| Engine diagnosis indicator lamp, task | To indicate faults in the fuel injection system |
| Engine diagnosis indicator lamp, function | The indicator lamp is actuated by the instrument cluster via a CAN message from the engine control unit. As a check of the function it lights up when the ignition is ON and for approx. 1 second as of an engine speed of approx. 500 rpm. The indicator lamp goes out if there is no fault present. |
