"CHECK ENGINE" indicator lamp, location/task/function - GF54.30-P-4101M
MODEL 216, 221 with ENGINE 275.953 with CODE (494) USA version
MODEL 216, 221 with ENGINE 275.982 with CODE (494) USA version

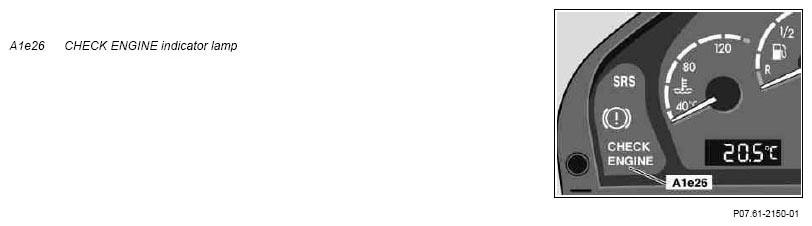

Shown on the instrument cluster of model 220
| CHECK ENGINE indicator lamp, location | The CHECK ENGINE indicator lamp is located in the instrument cluster. |
| CHECK ENGINE indicator lamp, task | To indicate faults in the fuel injection system |
| CHECK ENGINE indicator lamp, function | The indicator lamp is actuated by the instrument cluster via a CAN message from the engine control unit. As a check of the function it lights up when the ignition is ON and for approx. 1 second as of an engine speed of approx. 500 rpm. The indicator lamp goes out if there is no fault present. |
