Removing and installing headlamp for daytime running light - AR82.10-P-2300SC

MODEL 216 as of model year 2011

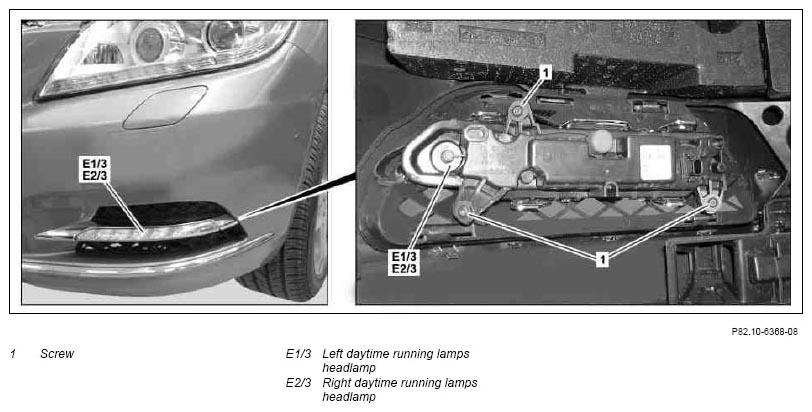

Fig 1: Identifying Left And Right Daytime Running Lamps Headlamp And Screws

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Detach front bumper	When removing left daytime running light headlamp (E1/3) or right daytime running light headlamp (E2/3).	AR88.20-P-2000SCS
1.2	Remove front bumper	When removing left daytime running light headlamp (E1/3) and right daytime running light headlamp (E2/3).	AR88.20-P-2000SCS
2	Detach electrical connector from left daytime running light headlamp (E1/3) or right daytime running light headlamp (E2/3)
3	Remove screws/bolts (1) at rear
4	Remove left daytime running light headlamp (E1/3) or right daytime running light headlamp (E2/3) from bumper covering	Installation:  Ensure that the left daytime running lights headlamp (E1/3) or right daytime running lights headlamp (E2/3) is seated correctly in bumper.
5	Remove bezel from left daytime running light headlamp (E1/3) or right daytime running light headlamp (E2/3)	Only when replacing left daytime running light headlamp (E1/3) or right daytime running light headlamp (E2/3).
			*452589016300
6	Install in the reverse order

Fig 2: Identifying Snap-Release Tool (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
