Remove/install taillamp, trunk lid - AR82.10-P-4915SC

MODEL 216 as of model year 2011

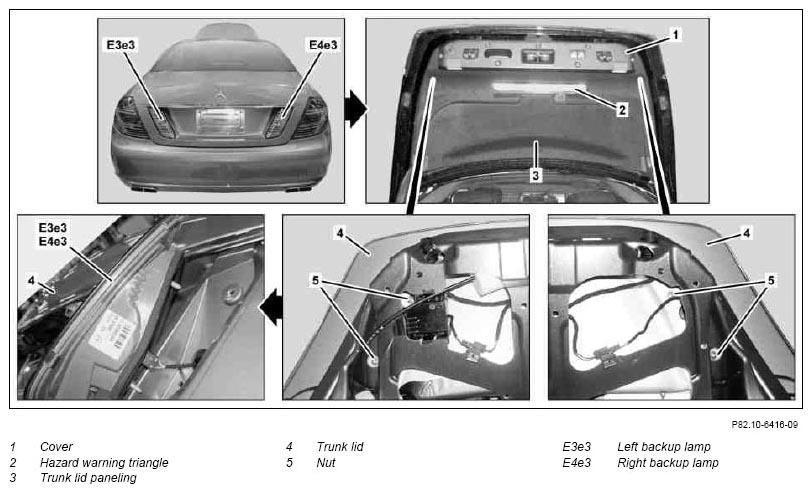

Fig 1: Identifying Taillamp, Trunklid Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover (1)
2	Remove hazard warning triangle (2) and remove holder
3	Detach trunk lid trim (3)		*452589016300
4	Remove nuts (5) for left backup lamp (E3e3) or right backup lamp (E4e3) from trunk lid (4)
5	Remove left backup lamp (E3e3) or right backup lamp (E4e3) from trunk lid (4)	Installation:  Check sealing of left backup lamp (E3e3) or right backup lamp (E4e3) for signs of damage, replace if necessary.
6	Install in the reverse order

Fig 2: Identifying Snap-Release Tool (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
