Remove/install blocking circuit of rear window antenna - AR82.62-P-7200SX

MODEL 216.3, 221.0 /1

Shown on model 221.0

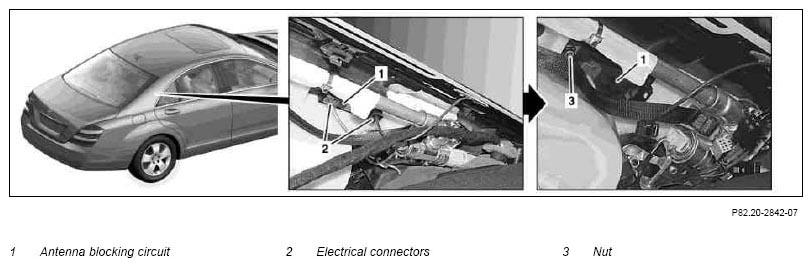

Fig 1: Identifying Antenna Blocking Circuit, Electrical Connectors And Nut (Shown On Model 221.0)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove right C-pillar paneling at top	Model 221.0/1 without code (Z07) Top protection.	AR68.30-P-4490SX
		Model 221.1 with code (Z07) Top protection.	AR68.30-P-4490SXS
		Model 216.3	AR68.30-P-4490SC
2	Disconnect electrical connectors (2).
3	Unscrew nut (3) and remove antenna trap circuit (1)
4	Install in the reverse order
